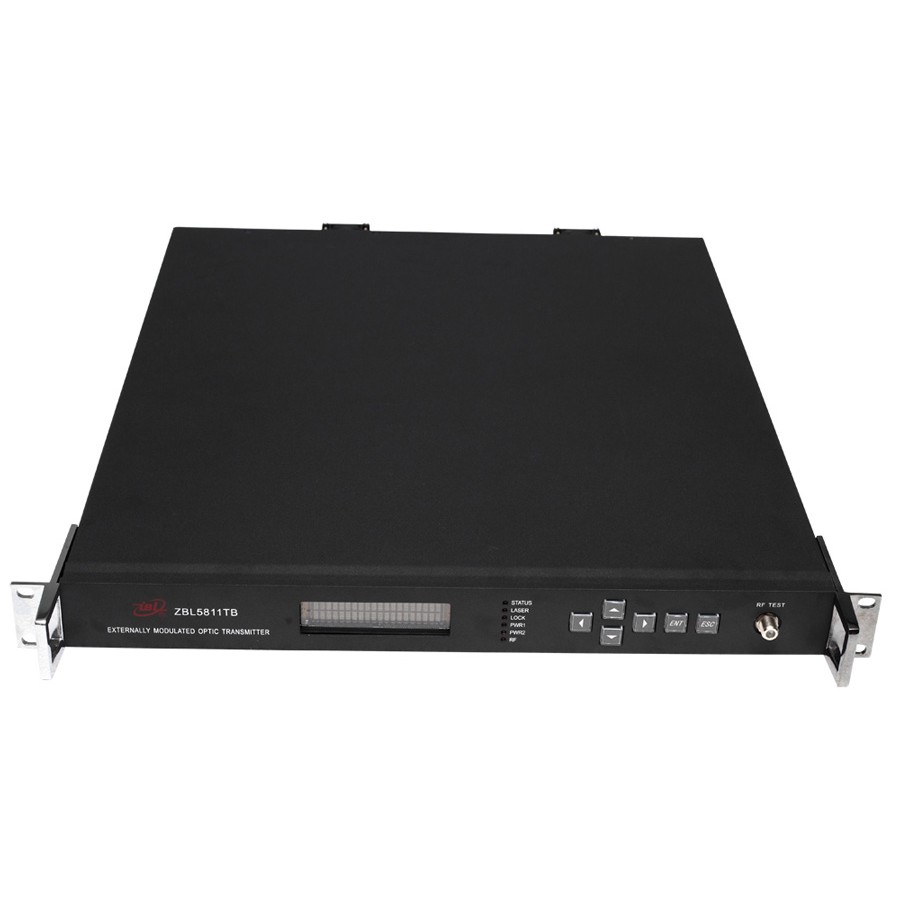

ZBL5811TB/TC 1550nm External Modulation Optical Transmitter

1. Imported low-noise DFB laser, High linear LiNbO3 external modulator
2. Excellent pre-distortion circuit ensures the best CTB and CSO when the CNR is in high standard
3. Perfect SBS suppress circuit and adjustable SBS in 13,16, 18
4. AGC and MGC function
5. Automatically temperature control
6. Intelligent fan control,extend the life of fan, reduce unnecessary power consumption
7. RJ45 and RS232 standard interface
8. VFD display, humanized button

Specifications

Item
Units
Value
Wavelength
nm
1550±10
Output Power
dBm
1*5,1*6,1*7,1*9,2*5, 2*6,2*7,2*9
Optical Return Loss
dB
≥60
Connector
/
FC/APC Or SC/APC
Bandwidth
MHz
45-862
Input Level
dBmV
23±5 AGC
Flatness
dB
≤±0.75 45~862MHz
Return Loss
dB
>16 45~750MHz
Input Impedance
Ohm
75
CNR*
dB
≥50
CTB*
dB
≤-63
CSO*
dBm
≤-63
SBS
dBm
≥16.0 13,16,18
Power Supply
VAC/VDC
90~265/ -48
Power Consumption
W
≤50
Working Temperature
0~50
