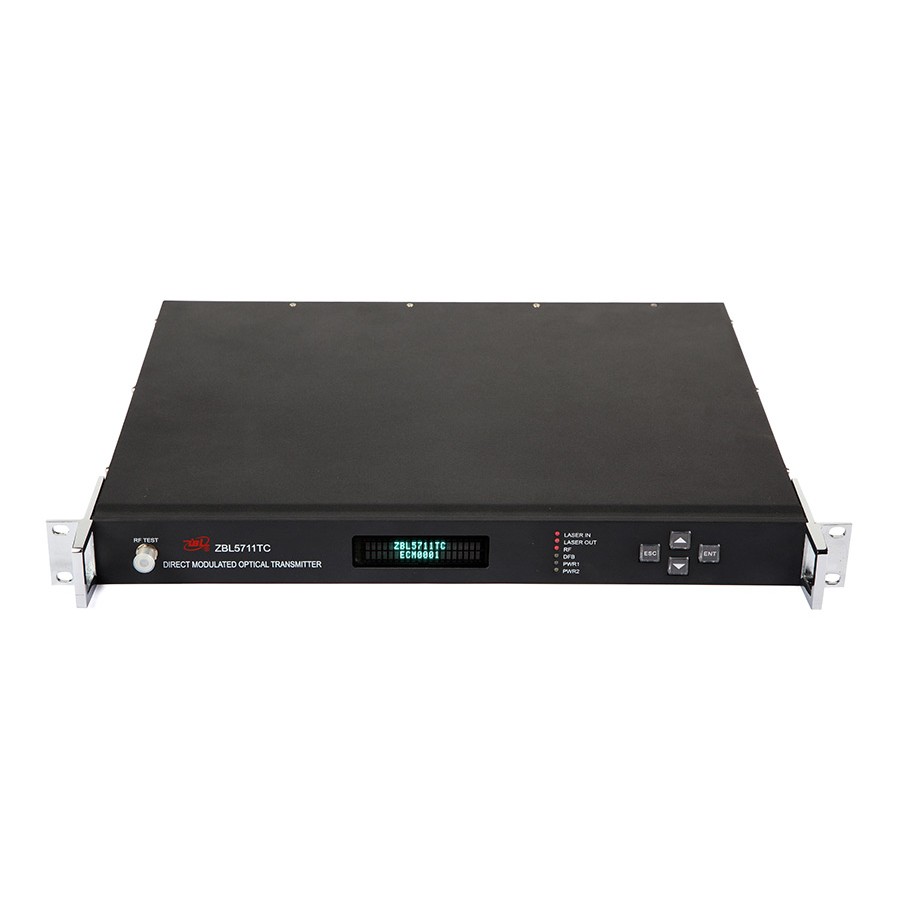

1. 1U standard rack mounted case
2. High-linearity& low-noise DFB laser
3. Backlight LCD shows all the parameters
4. The operation status can be monitored by network management softward(web browser)
5. SNMP management system
|
Item |
Units |
Value |
|
Bandwidth |
MHz |
47-1002 |
|
Flatness |
dB |
+/-0.75 |
|
Return Loss |
dB |
≥16(47-550MHz); ≥14(550-1002MHz) |
|
Input Impedance |
Ω |
75 |
|
Input level |
dBuV |
85±5(AGC) |
|
Optical Wavelength |
nm |
1550+/-20 |
|
Optical Power |
dBm |
-3~+5 |
|
CTB |
dB |
≥65 |
|
CSO |
dB |
≥60 |
|
CNR |
dB |
≥51 |
|
Optical Connector |
/ |
SC/APC or FC/APC |
|
Management Interface |
/ |
RJ45,RS232 |
|
Voltage |
V |
110~240VAC |
|
Power Consumption |
W |
≤10 |
|
Working Temperature |
C |
-20~85 |
|
Dimension: |
mm |
484x416x44(WxDxH) |
|
Weight |
kg |
≤6 |
