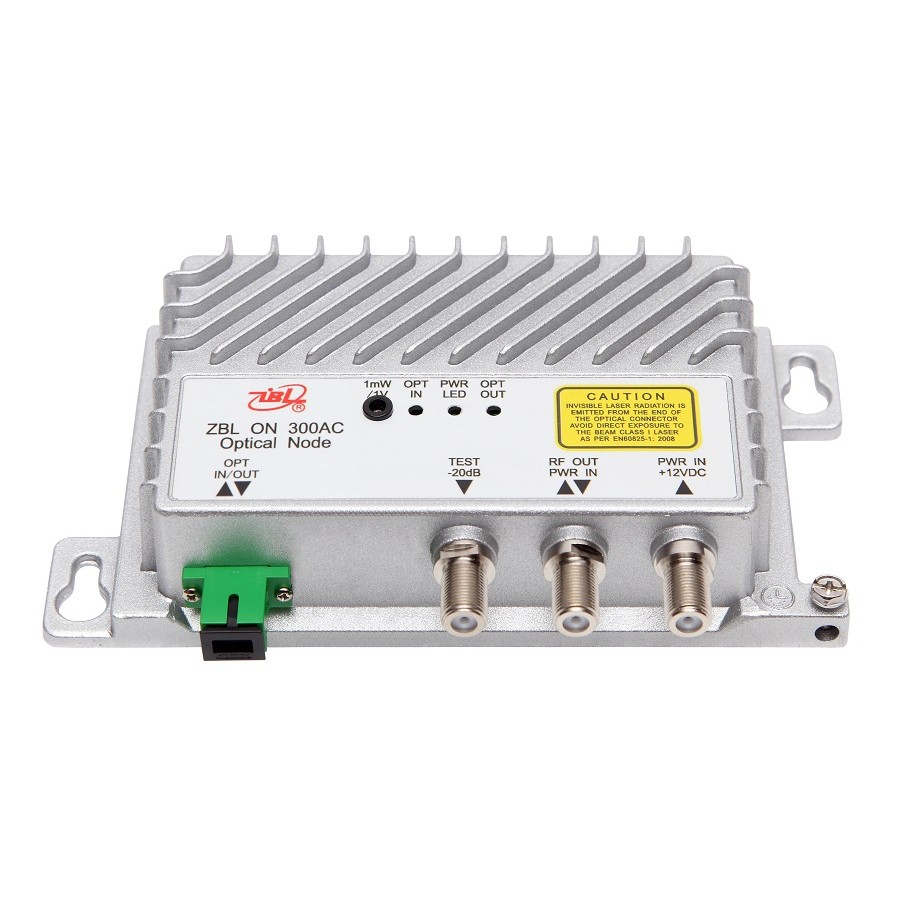

ZBL-ON -300AC Mini Optical Nodes with burst mode is a bi-directional optical node by one fiber
transmission that combine the superior proven technologies of both the RF amplifier and optical
components. In the forward receiver path, the node contains an Automatic Gain Control(AGC) circuit to maintain the output level over an input optical power of -6~+2dBm. In the return path.
Automatic Optical Control(AOC) circuit is designed to reduce the return noise effectively, to lower the
power consumption and prolong the working life. It is compact in size, high performance and high reliability,
and can provide the full comptement of functions required by FTTB,FTTH networks.
| SYMBOL | PARAMETER | CONDITIONS | MIN | TYP | MAX | UNIT |
| Forward Receiver | ||||||
| λ | Optical Wavelength | 1540 | 1550 | 1560 | nm | |
| Vopt.in | Monitor Voltage | λ=1550 | 1 | V/mW | ||
| Pin | Optical Input Power | Continuous | -6 | -1 | 2 | dBm |
| F | Frequency Range (optional) | (Note1) | 54 | 1002 | MHz | |
| FL | Flatness of Frequency Response | f=54 to 1002MHz | ±0.75 | dB | ||
| S22 | Output Return Loss | 14 | 16 | dB | ||
| Lo | Reference Output Level | (Note2) | 20 | dBmV | ||
| Optical Input Return Losses | 45 | dB | ||||
| C/N | C/N |
98 Pal-D channel loading, 10dB low above 550MHz (-1dBm Optical Input) |
50 | dB | ||
| CTB | CTB | -65 | dB | |||
| CSO | CSO | -60 | dB | |||
| f | Equivalent Noise Input | f=55MHz | 7 | pA/Hz | ||
| Return Transmitter | ||||||
| λ | Optical Wavelength | 1590/1610 are available | 1290 | 1310 | 1330 | nm |
| Wout | Optical Output Power | 0.5 | 2 | 3 | dBm | |
| LRin | RF Input Level | 10 | 25 | 40 | dBmV | |
| F | Frequency Range (optional) | 5 | 42 | MHz | ||
| FL | Flatness of Frequency Response | f=5 to 42MHz | ±0.75 | ±1 | dB | |
| S11 | Input Return Loss | f=5 to 42MHz | 14 | 16 | dB | |
| Optical Output Return Loss | 45 | dB | ||||
| Burst Mode* | ||||||
| P-ON | Power at which optical turn ON | (Note3) | 15 | dBmV | ||
| P-OFF | Power at which optical turn OFF | (Note3) | -4 | dBmV | ||
| T-ON | Time to 90％ optical ON | 1.3 | ms | |||
| T-OFF | Time for optical falls to 10％ | 1.6 | ms | |||
| General Paramters | ||||||
| Itot | Total Current Consumption (DC) | V+=12V | 280 | mA | ||
| Tmb | Operating Mounting Base Temperature | -20 | 55 | ℃ | ||
Note1：54 to 1002MHz:different frequency is available (e.g.85 to 1218MHz).
Note2：The power output is measured at 1002MHz.
Note3：Burst mode parameter can be adjustable according to customer's request.
