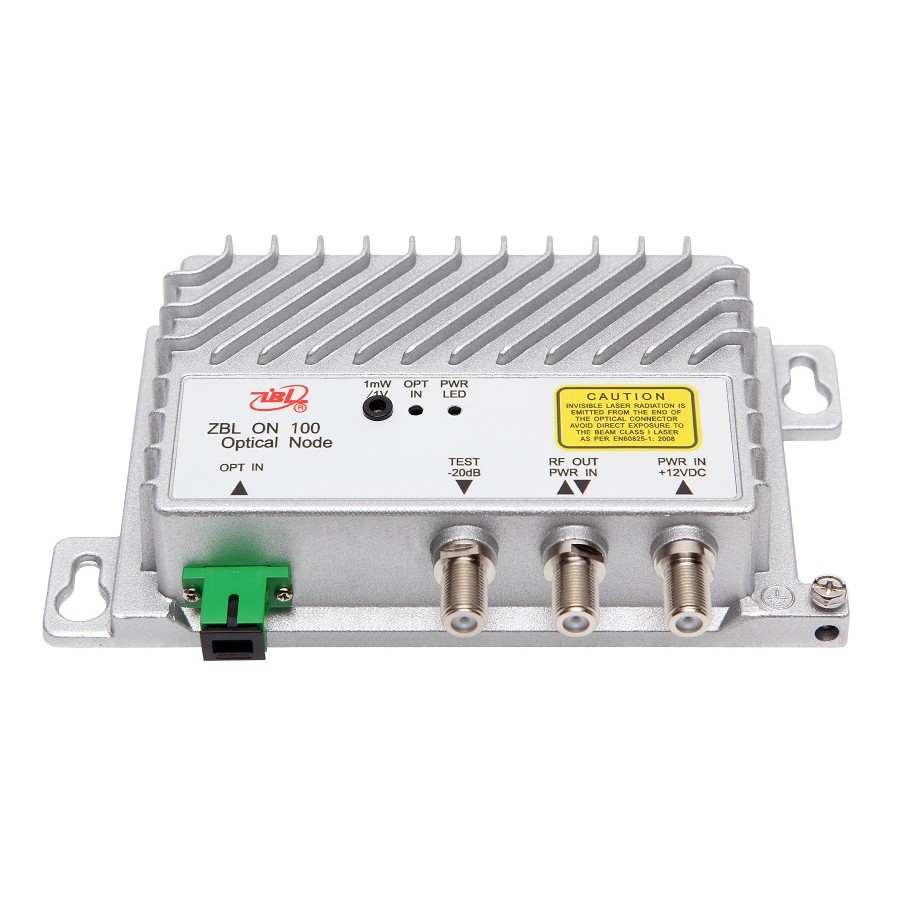

ZBL-ON-100 Mini Optical Node

Home > Optical Node > Mini Optical Node > ZBL-ON-100 Mini Optical Node

Description

ZBLON100 is a new generation optical node with imported excellent module that used for the FTTx and

CATV network system. Its the ideal terminal equipment for delivering video (digital or analog) as well as

highspeed data services over HFC network with one optical receiving module .ZBLON100 Mini Node is

very compact in size with high performance and high reliability.

Features
1.Excellent linearity, return losses and flatness

2.Low power consumption

3.Compact in size

4.External regulated power supply

5.Frequency range of 47 to 1002/1218MHz for HFC network

6.Voltage supply: 12-15V(DC)

7.One output with an impedance of 75Ω

8.Adopting GaAs technology for amplifier

9.Optical connector: SC/APC

10.Display and measurement of optical power Strong/Weak With -20dB forward testing ports

SYMBOL	PARAMETER	CONDITIONS	MIN	TYP	MAX	UNIT
Forward Receiver
λ	Optical Wavelength		1290	1550	1600	nm
Vopt.in	Monitor Voltage	λ=1550		1		V/mW
Pin	Optical Input Power	Continuous	-6	-1	2	dBm
F	Frequency Range (optional)		54		1218	MHz
FL	Flatness of Frequency Response	f=54 to 1218MHz		±0.75		dB
S22	Output Return Loss		16	18		dB
Lo	Reference Output Level			25		dBmV
	Optical Input Return Losses		45			dB
C/N	C/N	98 Pal-D channel loading, 10dB low above 550MHz (-1dBm Optical Input)	50			dB
CTB	CTB				-65	dB
CSO	CSO				-60	dB
f	Equivalent Noise Input	f=55MHz			7	pA/Hz
