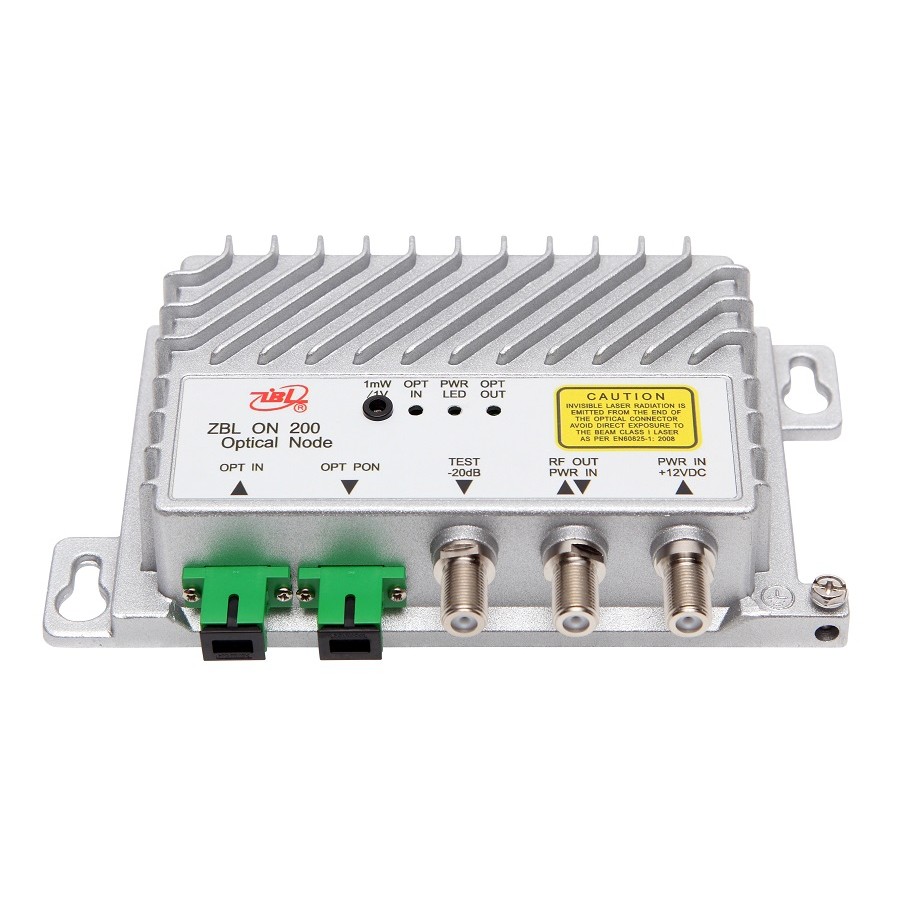

ZBL-ON-200 Mini Optical Node

ZBLON 200 is a new generation optical node with imported excellent module that used for the bi-directional optical fiber
and CATV network system. It's the ideal terminal equipment for delivering video (digital or analog) as well as highspeed
data services over HFC network with one optical receiving module and one transmitting module. ZBL-ON-200 Mini Node
is very compact in size with high performance and high reliability.

Features

1. Excellent linearity, return losses and flatness

2. Low power consumption

3. Compact in size

4.External regulated power supply

5.Frequency range of 5 to 1002/1218MHz for HFC network

6.Voltage supply: 12-15V(DC)

7.One output with an impedance of 75Ω

8.Adopting GaAs technology for amplifier

9.Optical connector: SC/APC

10.Display and measurement of optical power “Strong/Weak” With -20dB forward/reversed testing ports

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN	TYP	MAX	UNIT
Forward Receiver
λ	Optical Wavelength		1290	1550	1600	nm
Vopt.in	Monitor Voltage	λ=1550		1		V/mW
Pin	Optical Input Power	Continuous	-6	-1	2	dBm
F	Frequency Range (optional)		54		1218	MHz
FL	Flatness of Frequency Response	f=54 to 1218MHz		±0.75		dB
S22	Output Return Loss		16	18		dB
Lo	Reference Output Level			25		dBmV
	Optical Input Return Losses		45			dB
C/N	C/N	98 Pal-D channel loading, 10dB low above 550MHz (-1dBm Optical Input)	50			dB
CTB	CTB				-65	dB
CSO	CSO				-60	dB
f	Equivalent Noise Input	f=55MHz			7	pA/Hz
Return Transmitter
λ	Optical Wavelength	or 1610	1290	1310	1330	nm
Wout	Optical Output Power		0.5	2	3	mW
LRin	RF Input Level			40		dBmV
F	Frequency Range (optional)		5		42	MHz
FL	Flatness of Frequency Response	f=5 to 42MHz		±0.75		dB
S11	Input Return Loss	f=5 to 42MHz	16	18		dB
	Optical Output Return Loss		45			dB
