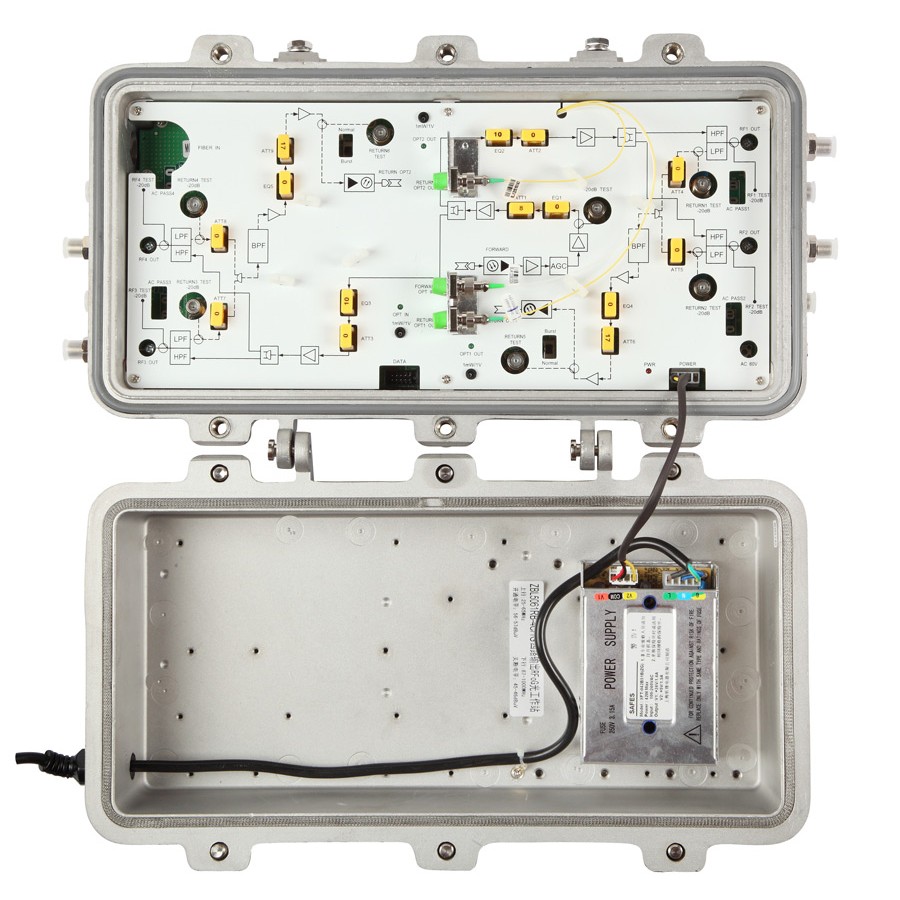

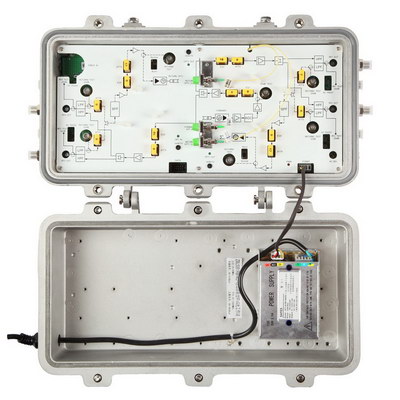

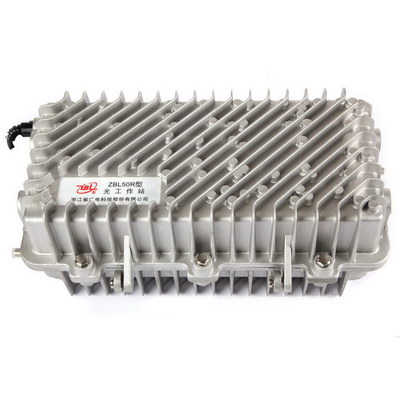

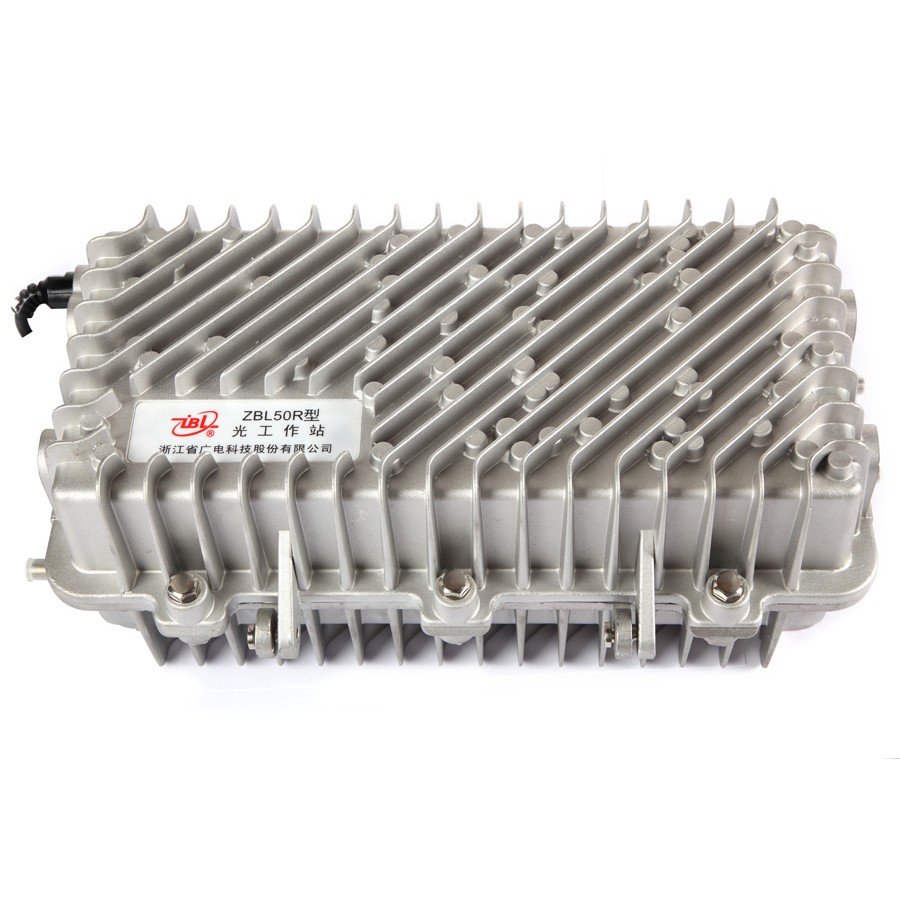

ZBL5061RB-4C/1G, an RFoG optical receiver with four-way output, is one part of bidirectional access network, is applied to the new generation of RFoG bidirectional optical fiber network. The machine adopts the aluminum casting integration shell and switching power supply with low ripple wave. Select good photovoltaic devices with high sensitivity to provide four forward 87MHz ~ 1GHz high gain and equilibrium output. Equipped with -8 ~ +2dBmW optical AGC function. The machine is preseted network management interface.
The machine is a return transmitting system with two independent, adopts feedback lasers with isolation, with RFoG burst mode.
|
Performance |
Index |
Notes |
|||||
|
Min. |
Typ. |
Max. |
|||||
|
Forward |
Wavelength |
(nm) |
1200 |
|
1620 |
|
|
|
Receiving optical power |
(dBmW) |
-8 |
|
+2 |
|
||
|
Frequency Range |
(MHz) |
87 |
|
1002 |
|
||
|
Output Level |
(dBmV) |
102 |
104 |
|
@543.25MHz(DS22) |
||
|
Equilibrium Degree |
(dB) |
10 |
12 |
|
87MHz to 1G |
||
|
C/N |
(dB) |
|
51 |
|
-1dBmW@ PAL 59 Canal |
||
|
CSO |
(dB) |
|
60 |
|
|||
|
CTB |
(dB) |
|
65 |
|
|||
|
Return Loss |
(dB) |
14 |
16 |
|
|
||
|
Return |
Optical Wavelength |
(nm) |
|
1310 |
|
|
|
|
Output Optical Power |
(mW) |
|
1 |
|
|
||
|
Band width |
(MHz) |
25 |
|
65 |
|
||
|
RF Output level |
(dBmV) |
|
100 |
|
|
||
|
Flatness |
(dB) |
|
0.75 |
|
|
||
|
Return Loss |
(dB) |
16 |
|
|
|
||
|
Open Level |
(dB) |
|
56.5 |
|
|
||
|
Shutoff Level |
(dB) |
|
45.5 |
|
|
||
|
Open Delay |
(ms) |
|
0.8 |
|
|
||
|
Shutoff Delay |
(ms) |
|
1.1 |
|
|
||
|
General Characteristics |
Power Supply |
AC |
(V) |
180 |
220 |
240 |
|
|
Power Consumption |
(W) |
|
31.5 |
|
|
||
|
Operating Temperature |
(℃) |
-25 |
|
+65 |
|
||
|
Relative Humidity |
(℃) |
5 |
|
95 |
|
||
|
Dimension |
(mm) |
440×230×170 |
(W)×(D)×(H) |
||||
