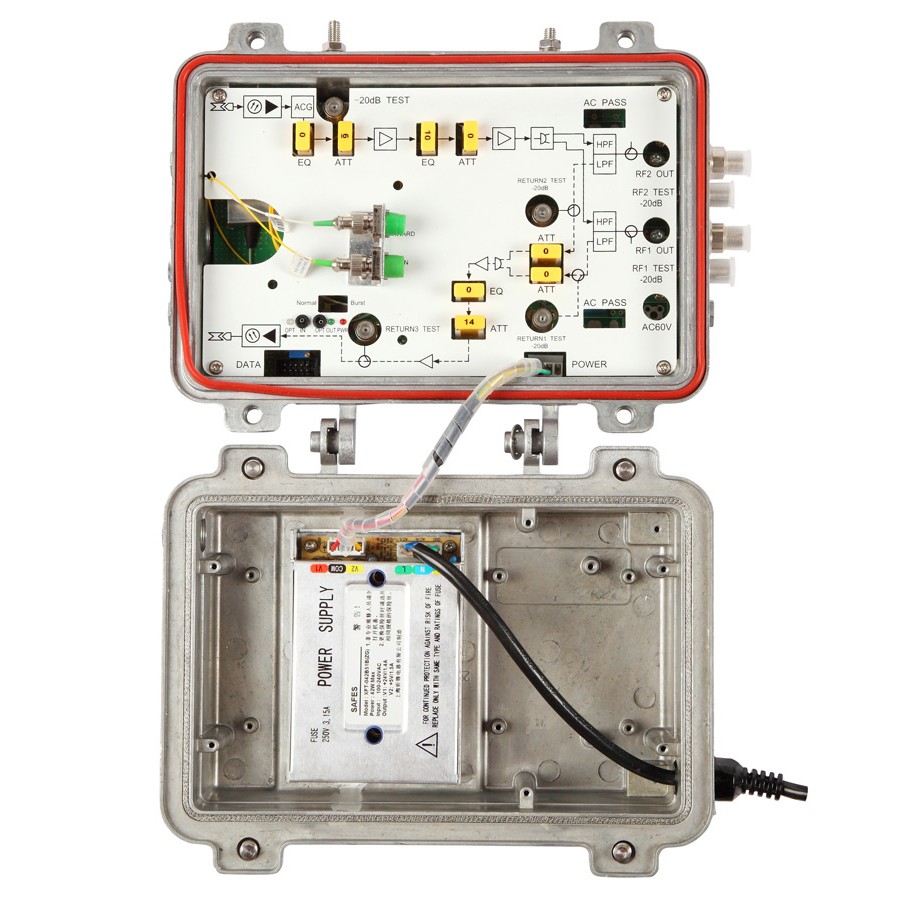

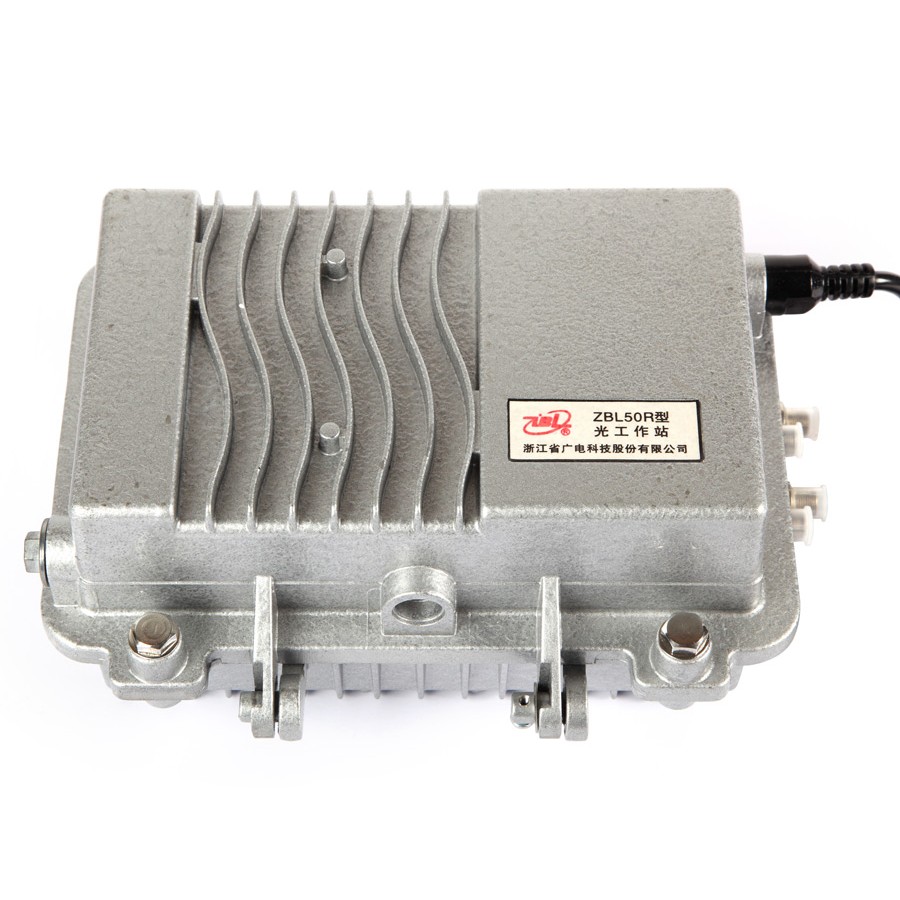

ZBL5061RB series dual fiber bidirectional optical receiver, integrated a forward optical receiving unit and return transmitting unit. The forward path adopts photoelectric conversion device with high performance and multistage amplifier circuit. The final stage adopts imported GaAs power multiplication module, with terrific optical link index. In the return transmitting link, we adopt patent technology of RFoG that designed independently by ourselves. We design the function of automatic transmitting optical power control (AOC), which reduce convergent noise of return system and the power consumption, and prolong the working life. The machine is equipped input and output optical power display, forward optical AGC control, adjustable attenuation and equilibrium. Suitable for 1 GHZ bidirectional HFC network of cable TV, is preferred products for bidirectional HFC network of cable TV upgrade of the large, medium and small cities and towns.
|
erformance |
Index |
Notes |
||
|
Forward |
Wavelength |
(nm) |
1550±5 |
|
|
Frequency Range |
(MHz) |
87~1002 |
According to the ordering requirement |
|
|
Flatness |
(dB) |
±0.75dB |
|
|
|
Return Loss of optical input |
(dB) |
>45dB |
|
|
|
Return Loss of output port |
(dB) |
87~550MHz ≥16dB； 550~1000MHz ≥14dB |
|
|
|
Optical AGC control arrange |
dBm |
-8~0 |
-1dBm(typical value) |
|
|
Distribution output Level |
(dBuV) |
≥108 |
|
|
|
CTB |
(dB) |
≥65dB |
|
|
|
CSO |
(dB) |
≥60dB |
|
|
|
C/N |
(dB) |
≥51 dB |
|
|
|
Return |
Optical Wavelength |
(nm) |
1310 |
According to the ordering requirement |
|
Output Optical Power |
(mW) |
1 |
According to the ordering requirement( Optional 1mw, 2mw,3mw) |
|
|
Optical transmitting model |
|
Normal/Burst |
Burst mode: it tests in laser drive level test port (Return test);Open level is56.5 ± 0.5 dB μ V, shutoff level is 45.5±0.5 dB μ V |
|
|
Frequency range |
(MHz) |
25~65 |
According to the ordering requirement |
|
|
Nominal input level |
(dBmV) |
80 |
Input range:70~100 |
|
|
Flatness |
(dB) |
±1 |
|
|
|
Return Loss |
(dB) |
≥14 |
|
|
|
General characteristics |
Optical connector |
|
SC/APC or FC/APC |
|
|
Power Consumption |
(W) |
≤20W |
|
|
|
Dimension |
(mm) |
300×220×135 |
(L)×(W)×(H) |
|
|
Weight |
(Kg) |
3 |
|
|
