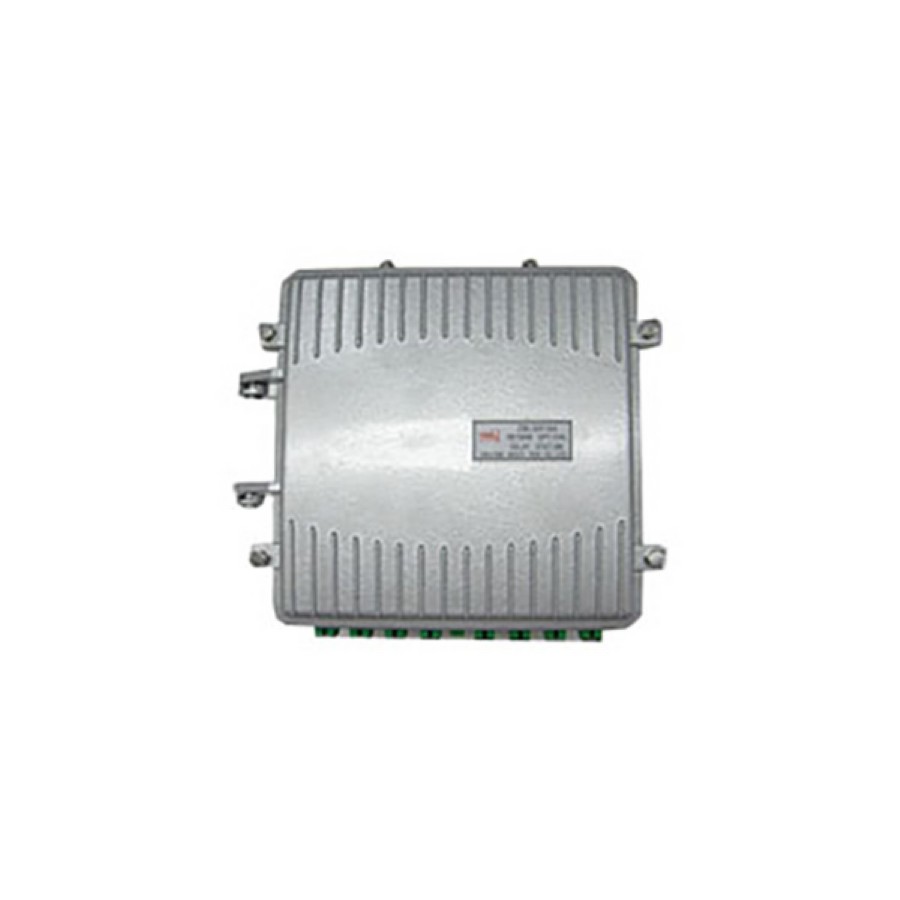

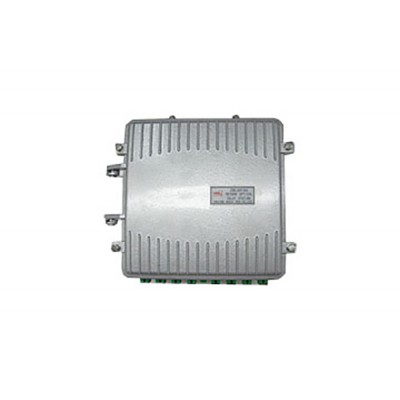

ZBL5016A RFoG Return Optical Relay Station

ZBL5016A 16-channel return optical replay station is applicated to return path of HFC bi-directional network.16-channel optical signals from subscribers mix into one optical signal by ZBL5016A to transmit CATV headend that helps to reduce quantity of return optical cable effectively,meanwhile,ZBL5016A increases the output of optical power to lengthen distance of return optical transmission.

Specifications

Items	Parameters
Optical Connector	SC/APC
Receiving Optical wavelength	1290-1600nm
Nominal Input Optical Power	-2dBm
Transmitting Optical Wavelength	1310nm
Nominal Output Optical Power	1mW,2mW,3mW optional
RF Broadband	5-200MHz
NPR Dynamic Range	≥10 dB （NPR≥30 dB）
Flatness In Band	±1 dB
RF Test Port	-20dB
