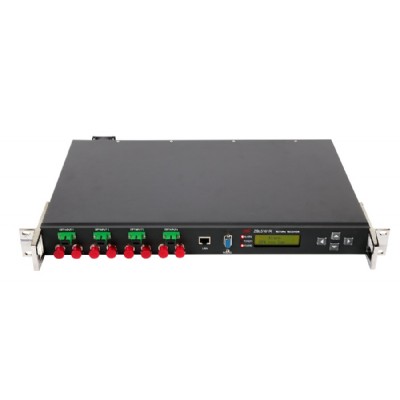

ZBL5161RA RFoG Return Path Receiver

ZBL5161RA-4C-IP-RFoG return path receiver,a new generation headend equipment, is one part of bi-directional accessing optical network.

Specifications

Items

Value

Remark

Min

Typ

Max

Optical

paramters

Wavelength

(nm)

1200



1620



Response

R13

(A/W)

0.85

0.95



1310nm

R15

0.85

1.0



1550nm

R16



0.85



1610nm

Optical link budget

(dB)

27







Input optical power

Type

(dBm)

-27



-13



Sensitivity



-32



pr

Overload Power

-7

-5



po

Receiver Quantity

(pcs)

4



Optical return loss

(dB)

50







Optical connector



SC/APC





RF Parameters

Broadband

(MHz)

5



100



RF output level

(dBmV)

30



60



RF adj gain

(dB)

-30



0



flatness

(dB)

-0.75



+0.75



Return loss

(dB)

16







RF Testing spot

(dB)

-20.5

-20

-19.5



NPR

(dB)

36







40







General Parameters

Power supply

AC

(v)

110

220

265



DC

-30

-48

-72



Power consumption

(w)





12



Operating temperature

(℃)

-40



+65



relative humidity

(℃)

5



95



dimension

(nm)

480×325×44

(W)×(D)×(H)
