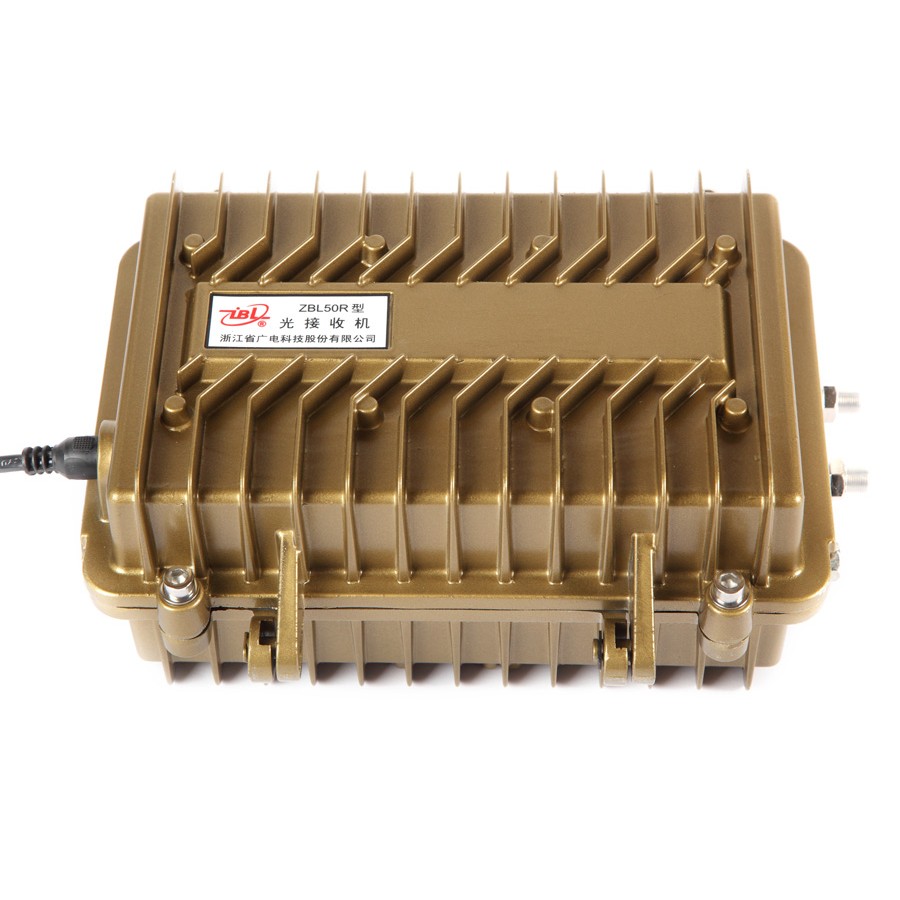

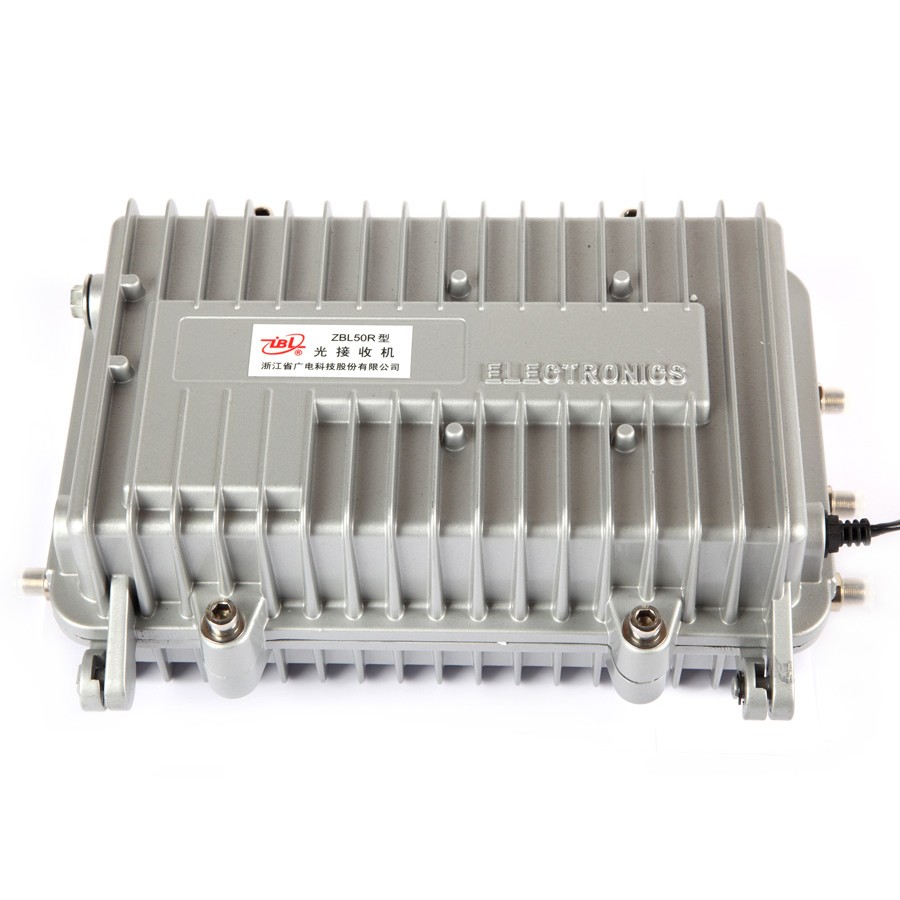

ZBL5011RE outdoor optical receiver can be applied to 750MHz & 862MHz CATV system. This series
optical receiver has excellent optical link circuit index and can hold multistage amplifier. It is the ideal
choice for the CATV network system construction of villages and towns
1 High-performance optical receiving module & imported power multiplier amplifying module
2 Total sealed waterproof shell made of aluminum alloy
3 Power supply is optional (60VAC or 220VAC)
4 Primary output and spare output are both feeding-able (60VAC)
5 “Bugles” absorption function
6 Output level is adjustable (0~18dB)
7 Plug-card structure of equalizer

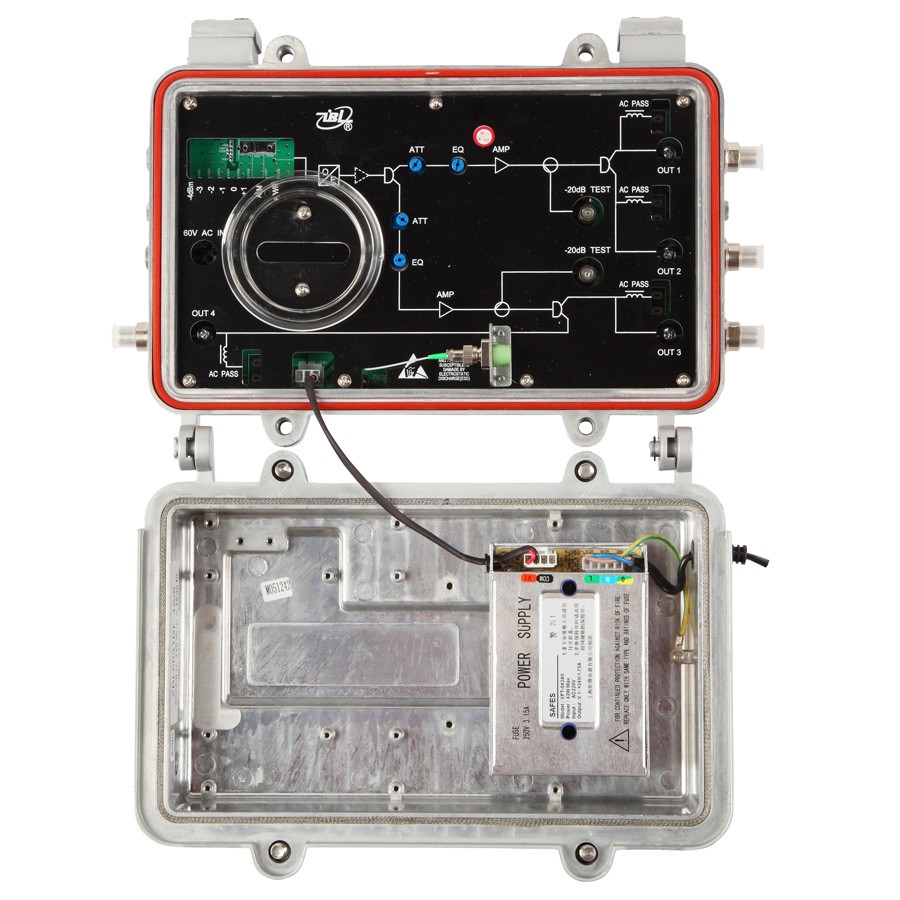

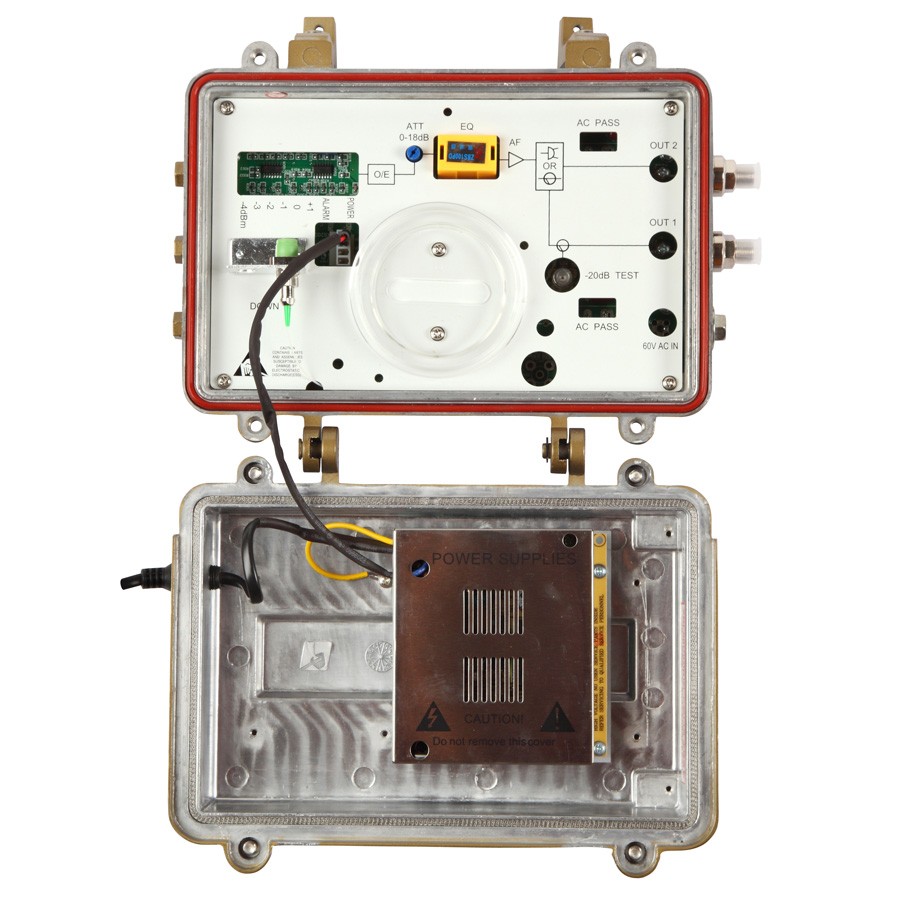

Block Diagram
|
Item |
Units |
Value |
||||||
|
RF and Optical Parameters |
||||||||
|
Model No. |
ZBL5011RE-2(1)A/7 |
ZBL5011RE-2(1)A /8 |
||||||
|
Input Optical Power Range |
dBm |
-4～+2 |
-4～+2 |
|||||
|
Optical Return Loss |
dB |
>45 |
>45 |
|||||
|
Equivalent Input Noise Current |
PA/Hz1/2 |
≤8 |
≤8 |
|||||
|
Optical Wavelength |
nm |
1310±20,1550±20, or double-window |
1310±20,1550±20, or double-window |
|||||
|
Optical Connector |
/ |
FC/APC* |
FC/APC* |
|||||
|
Broadband |
MHz |
47-750 |
47-862 |
|||||
|
Level Adjustable Range |
dB |
0-18 adjustable |
0-18 adjustable |
|||||
|
Flatness |
dB |
±0.75 |
±0.75 |
|||||
|
Output Level |
dBμv |
ZBL5011RE-2A/7 |
102±2 |
ZBL5011RE-2A/8 |
102±2 |
|||
|
ZBL5011RE-1A/7 |
106±2 |
ZBL5011RE-1A/8 |
106±2 |
|||||
|
RF Output Impedance |
Ω |
75 |
75 |
|||||
|
RF Output Return Loss |
47-550MHz |
dB |
16 |
16 |
||||
|
550-750/862MHz |
dB |
14 |
14 |
|||||
|
Nonlinear Distortion |
CTB |
dB |
≥65 |
≥65 |
||||
|
CSO |
dB |
≥60 |
≥60 |
|||||
|
General Parameters |
||||||||
|
Temperature Rang, e<, /SPAN> |
℃ |
-25~+55 |
||||||
|
Power Consumption |
W |
≤16 |
||||||
|
Voltage |
V |
30-65（60VAC）,220±20%(220VAC) |
||||||
|
Power Supply Indicator |
/ |
On the mainbroad |
||||||
|
Input Optical Power Indicator |
/ |
On the mainbroad |
||||||
|
Dimension: W*D*H |
mm |
238*158*110 |
||||||
|
Weight |
Kg |
3 |
||||||
|
Output Port Connector |
/ |
F type |
||||||
|
Test Port Connector |
/ |
F type |
||||||
*All Parameters is subject to change without notice. Type value is tested under the temp. of 20 ℃.
