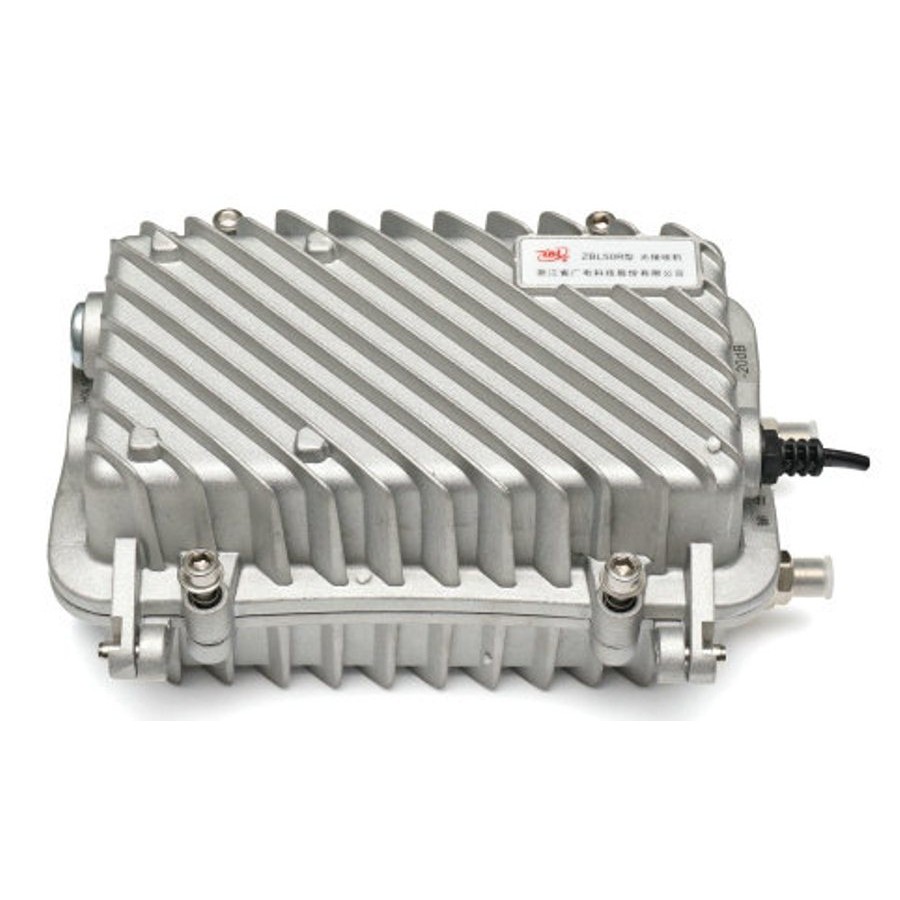

ZBL5011RG outdoor optical receiver can be applied to 750MHz & 862MHz CATV system. This series optical receiver has
excellent optical link circuit index, It is the ideal choice for the CATV network system construction of villages and towns
1 High-performance E-O Pin optical receiving module & imported power doubled amplifying module
2 Total sealed waterproof shell made of aluminum alloy
3 Automatic Gain Control Function
4 Power supply is optional (60VAC or 220VAC)
5 Primary output and spare output are both feeding-able (60VAC)
6 “Bugles” absorption function
7 Output level is adjustable (0~18dB)
|
Item |
Units |
Value |
||||
|
Model No. |
ZBL5011RG-1(2) |
ZBL5011RG-4 |
||||
|
Optical Wavelength |
1100~1650nm |
|||||
|
Input Optical Power Range |
dBm |
-9～+2dBm |
||||
|
AGC Range |
dBm |
|
||||
|
Optical Return Loss |
dB |
>45 |
||||
|
Output power |
dB |
+3dBm |
||||
|
Optical Connector |
/ |
FC/APCor SC/APC* |
||||
|
Frequency range |
/ |
45~750/862/1002MHz |
||||
|
RF Output Return Loss |
dB |
≥16dB(47~550MHz) |
||||
|
≥14dB(550~750/862/1002MHz) |
||||||
|
Flatness |
dB |
±0.75 |
||||
|
Output Level |
dBμv |
≥110 dBμv |
||||
|
Nonlinear Distortion |
C/N |
dB |
≥51 |
|||
|
CTB |
dB |
≥65 |
||||
|
CSO |
dB |
≥60 |
||||
|
RF Output AGC Range |
dB |
±1.0dB |
||||
|
Power Consumption |
W |
≤20W |
≤35W |
|||
|
Output Port Connector |
/ |
F type |
||||
|
Temperature Range |
℃ |
-25~+55 |
||||
|
Dimension: W*D*H |
mm |
264*200*116 |
337*216*122 |
|||
*Testing condition:98 PAL-D channels, 10dB is lower after 550MHz,input power@-1dBm ,OMI=3.5%
