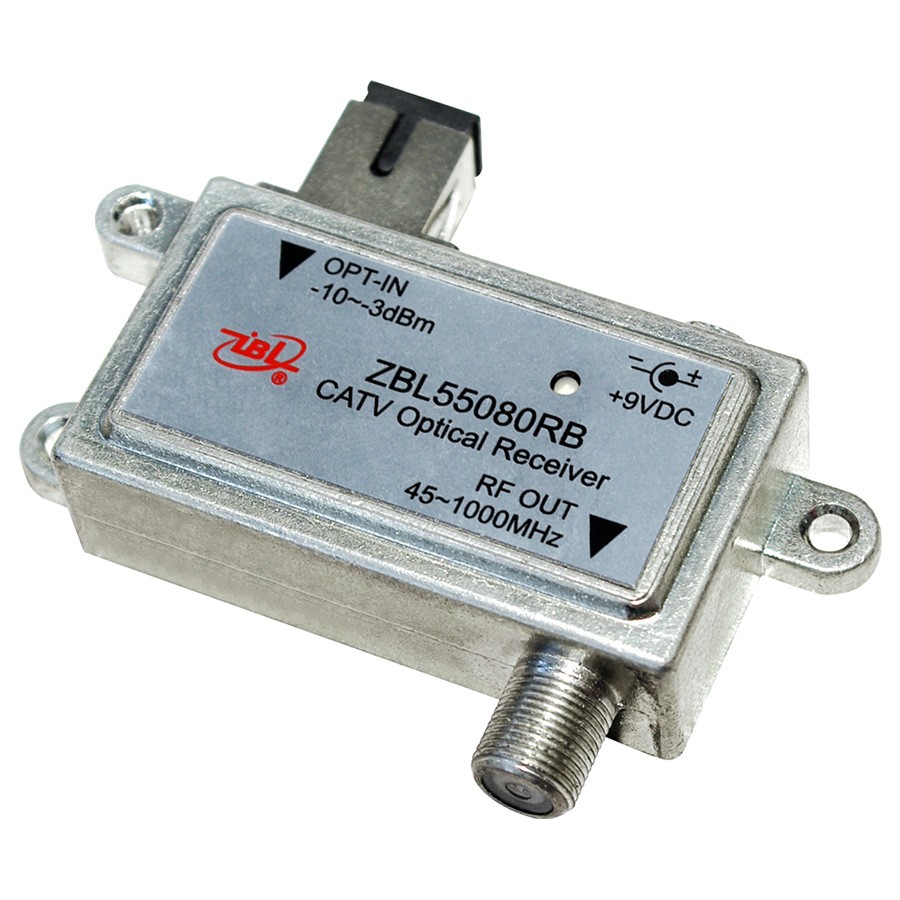

ZBL55080RB-PON is a modem optical receiver designed for FTTH (Fiber To The Home) and GPON/EPON applications.This device is made in die-cast metal housing and may be mounted in “mouse” type plastic housing. Receiver is equipped with SC/APC input connector and one RF output with “F” female connector. Optical receiver is also equipped with 3-stage LED optical input power indicator.
| OPTICAL PARAMETERS |
ZBL55080RB-PON
|
|
|
Optical input wavelength
|
nm
|
1550±10
|
|
Filter wavelength
|
nm
|
1310±10 & 1490±10
|
|
Input level range
|
dBm
|
-8…+2
|
|
AGC range
|
dBm
|
-7…0
|
|
Optical return-loss
|
dB
|
≥40
|
|
Max.input level (without danmaging of photodetector)
|
dBm
|
+3
|
|
Optical power indicator
|
dBm
|
Diode LED indicator:
Red: PIN＞+2
Green: PIN＜+2
OFF: PIN ＜-8
|
|
Optical connector
|
/
|
SC/APC
|
| RF PARAMETERS | ||
|
Frequency range
|
MHz
|
45…1002
|
|
Output return loss
|
dB
|
≥14
|
|
Flatness of frequency response
|
dB
|
±1.0
|
|
output level
|
dBuV
|
80
|
|
CTB
|
dB
|
≥65
|
|
CSO
|
dB
|
≥60
|
|
RF Output Stability in AGC range
|
dB
|
±1.0
|
| OTHER | ||
|
Operating voltage(external power supply)
|
V DC
|
9
|
|
Power consumption
|
W
|
1.5
|
|
Output connector
|
/
|
F
|
|
Operating temperature range
|
℃
|
-20…+55
|
|
Weight without power supply
|
kg
|
0.1
|
|
Dimension
|
mm
|
60×30×20
|
* CENELEC(42 channels),0 dB slope,3.5% OMI
