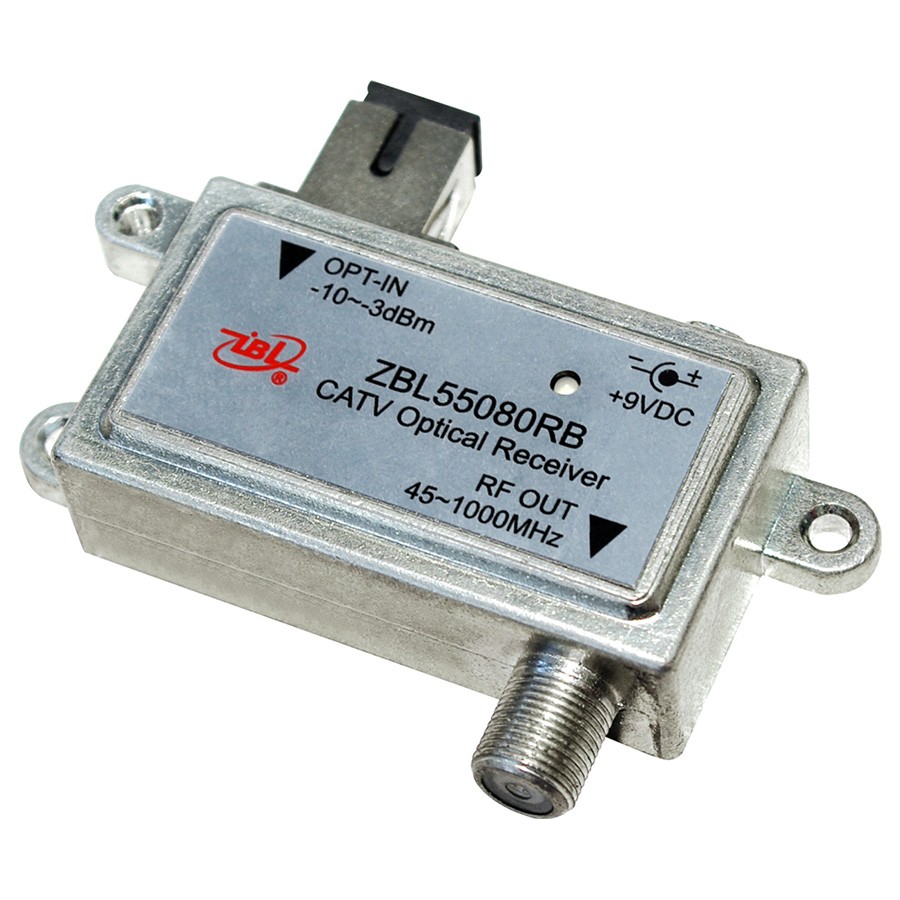

ZBL55080RB Micro Optical Receiver

Micro housing design
designed for FTTH network
3-stage LED optical input power indicator
Contains an Automatic Gain Control(AGC) circuit

Specifications

Optical Parameters Unit ZBL55080RB
Input level range(PIN)       dBm -13…-3
AGC range dBm -10…-3
Optical return-loss dB ≥40
Optical input wave length nm 1100-1650
Max.input level (without danmaging of photodetector) dBm +3
Output power indictor dBm
Diode LED indicator:
Red:PIN>-3 Green:-10
OFF:PIN<-10
Optical connector / SC/APC
RF Parameters
Frequency range MHz 45~1000
Output return loss dB ≥14
Flatness of frequency response dB ±1.0
Output level dBuV 80 *
CTB
dB
≥60 *
CSO
dB
≥60*
CN
dB
≥46**
RF Output Stability in AGC range
dB
±1.0
General Parameters
Optical voltage (external power supply) VDC 9
Power consumption W 1.5
Output connector / F
Operating temperature range °C -20~+55
Weight without power supply kg 0.1
Dimension(S*W*G) mm 60*30*20

* CENELEC(42 channels), 0 dB slope, 3.5% OMI

** CENELEC(42 channels), 0 dB slope, 3.5% OMI, -10dBm Optical power
