ZBL54180R CATV Optical Receiver Module

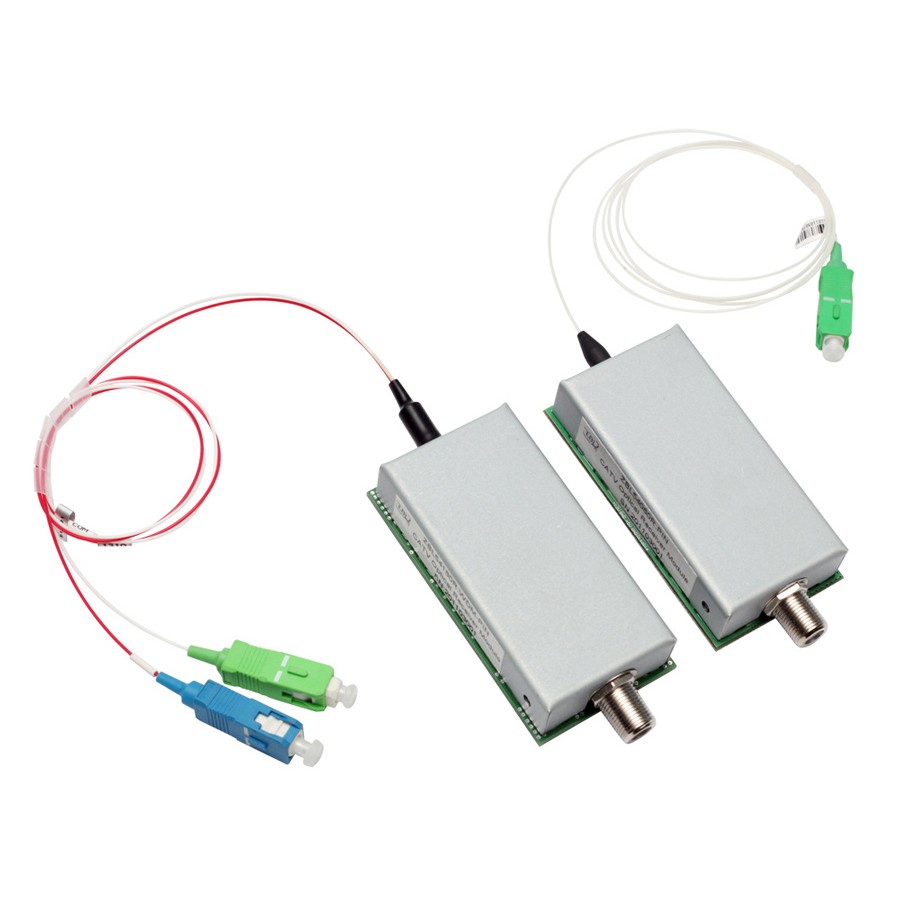

ZBL54180R CATV Optical Receiver Module is designed for FTTH networks ONUside to receive the 1550nm Video signal.The receicer integrates a WDM and PD to fit together eith EPON or GPON to fulfill triplay function for FTTH networks.It contains an Automagic Gain Cintrol(AGC) circuit to maintain the output level over an input optical power of -6dBm~+2dBm, and contains an Amplitude Equilibrium circuit to offer 4dB tilt over the frequency band of 45MHz~1000MHz to offset the high freuency’ attenuation of cable.ZBL54180R has an Rfoutput signal Enabio/Disable function for customers to control the video signal’s On/Off.

Specifications

Item	Units	Value
Wavelength Reffect	nm	1310±10 & 1490±10
Wavelength Receiving	nm	1550±10
Optical AGC	dBm	-6~+2
Optical Receive	dBm	-8~+2
Frequency Range	MHz	45~1000
Flatness of Frequency Response	dB	±1
Output Return Loss	dB	≥14
Tilt	dB	4
Reference Output Level	dBmV	20
CTB	dB	≥65 (Optical Power:+2dBm)
CSO	dB	≥60 (Optical Power:+2dBm)
C/N	dB	≥46 (Optical Power:-6dBm)

Ordering Information

ZBL54080R	PIN,45MHz~1000MHz,Optical AGC,20dBmVOutput,ON/OFF Control,FTTH
ZBL54180R	WDM+PIN,45MHz~1000MHz,Optical AGC,20dBmVOutput,ON/OFF Control,FTTH
ZBL54092R	PIN,45MHz~1000MHz,Optical AGC,32dBmVOutput, FTTH
ZBL54192R	WDM+PIN,45MHz~1000MHz,Optical AGC,32dBmVOutput,FTTH
