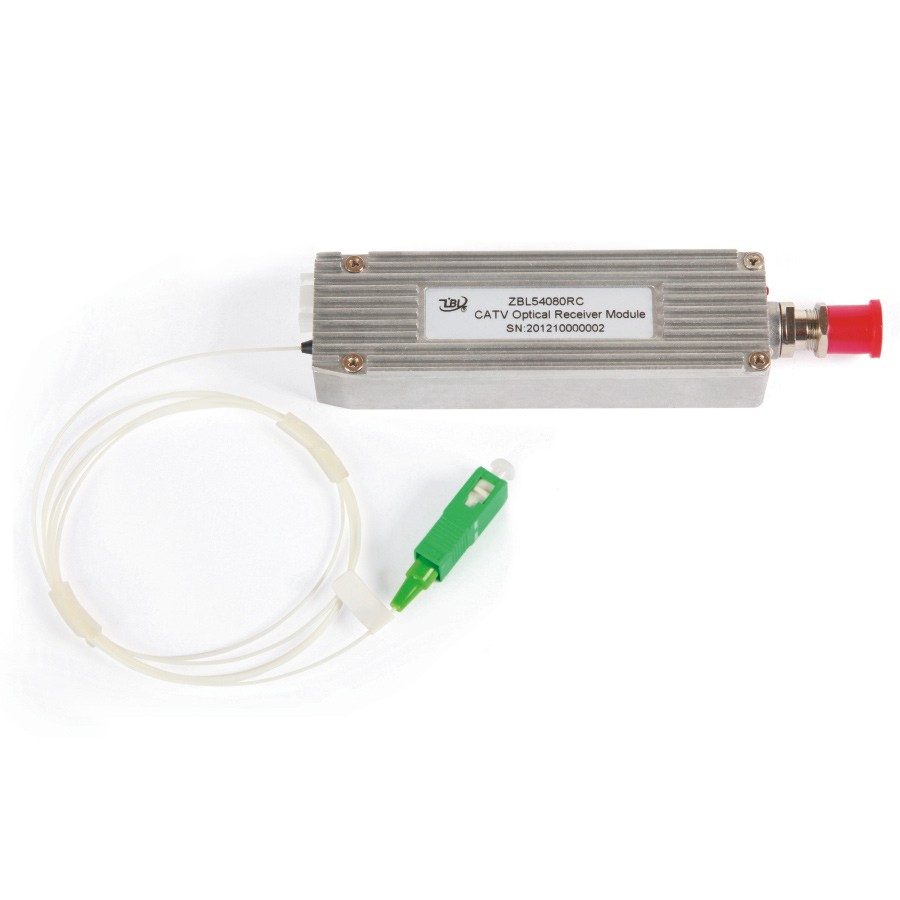

ZBL54080RC/ZBL54180RC Optical Receiver is designed for FTTx networks to receive the 1550nm video signal. ZBL54180RCoptical receiver integrates a WDM and PD, it can fit together with xPON (Passive Optical Net) SFP transceiver or PtoP optical transceiver to fulfill triplay function for FTTx networks.
|
Items |
Symbol |
Unit |
Min |
Typ |
Max |
Test condition |
|
Electrical Characteristics |
||||||
|
Bandwidth |
Fop |
MHz |
47 |
|
2400 |
|
|
RF Output Level |
Lo |
dBmv |
|
20 |
|
Note 1 |
|
Flatness In Band CATV(47-1002MHz) |
|
dB |
|
±1 |
|
|
|
Flatness In Band SAT IF(>1002MHz) |
|
dB |
|
±2.5 |
|
|
|
Output Return Loss CATV(47-1002MHz) |
|
dB |
14 |
|
|
|
|
Output Return Loss SAT IF(>1002 MHz) |
|
dB |
6 |
|
|
|
|
Output Impedance |
Zo |
Ω |
|
75 |
|
|
|
Output Isolation (output disabled) |
|
dB |
40 |
|
|
|
|
C/N |
CNR |
dB |
46 |
|
|
Note 2 |
|
C/CSO |
C/CSO |
dB |
60 |
|
|
Note 3 |
|
C/CTB |
C/CTB |
dB |
65 |
|
|
Note 3 |
|
Optical Receiver Characteristics |
||||||
|
Input Optical Power |
Popt |
dBm |
-10 |
|
0 |
|
|
Optical Return Loss |
|
dB |
35 |
45 |
|
|
|
Wavelength Reflection |
lIP1 |
nm |
1260 |
1310 |
1360 |
|
|
Wavelength Reflection |
lIP2 |
nm |
1480 |
1490 |
1500 |
|
|
Wavelength Pass |
lCATV |
nm |
1540 |
1550 |
1560 |
|
|
Isolation Ref-Pass |
lIP1 |
dB |
40 |
|
|
|
|
Isolation Com-Pass |
lIP2 |
dB |
40 |
|
|
|
|
Isolation Com-Ref |
lCATV |
dB |
20 |
|
|
|
|
Insertion Loss Reflection |
lIP1 |
dB |
|
|
1 |
|
|
Insertion Loss Reflection |
lIP2 |
dB |
|
|
1 |
|
|
Insertion Loss Pass |
lCATV |
dB |
|
|
1 |
|
Note1: Optical Input Power: -5dBm,1550nm, OMI=4%
Note2: Optical Input Power: -5dBm, 42 CENELEC channels,OMI=4%
Note3: Optical Input Power: -5dBm, 42 CENELEC channels,OMI=4%
*ZBL54180RB has not internal DWM without PON pass through function
