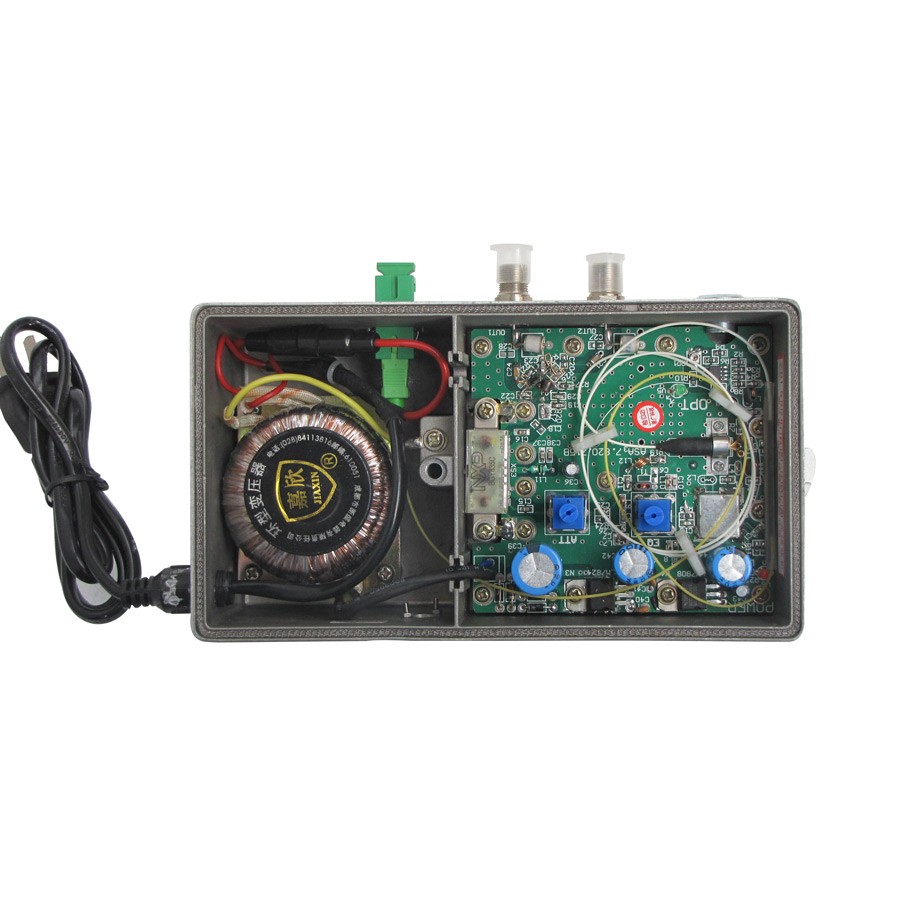

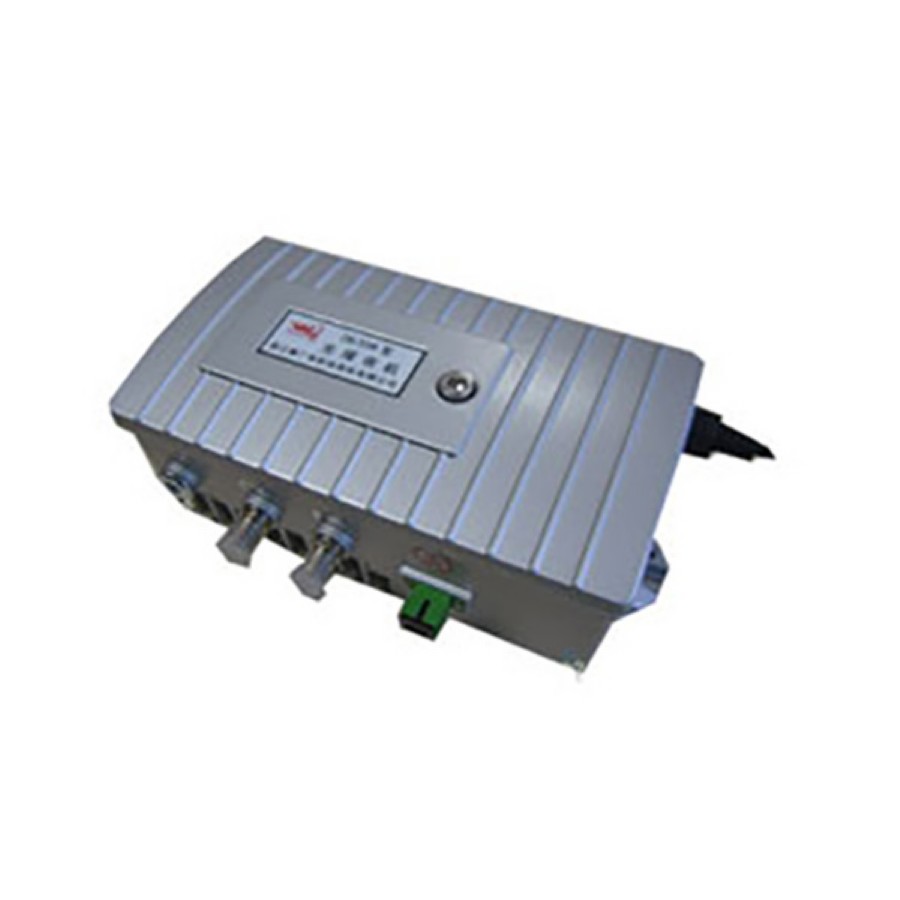

ZBL5531RB building optical receiver is compact in size with flexible installing.
It designs for CATV digitalization for FTTB and FTTH.
1.Adjustable ATT and EQ
2.Lower consumption with high reliability
3.Two RF Output in distribution
4.Lightning protection
5.Optical power monitoring circuit
|
Item
|
Unit
|
Value
|
|
Frequency
|
MHz
|
47～862
|
|
Input Optical Power Range
|
dBm
|
-5～+2
|
|
Wavelength
|
nm
|
1200～1600
|
|
Optical Return Loss
|
dB
|
>45
|
|
Noise
|
dB
|
≤8
|
|
Optical Connector
|
|
FC/APC,SC/APC,FC/PC
|
|
Flatness
|
dB
|
±1(47-862 MHz)
|
|
Return loss
|
dB
|
≥16(47-550MHz)≥14(550MHz)
|
|
C/N
|
dB
|
≥51*
|
|
CSO
|
dB
|
≥60*
|
|
CTB
|
dB
|
≥65*
|
|
RF Output Level
|
dBμV
|
100±2（-1dBm optical receiving）
|
|
Dimension
（L×W×H）
|
mm
|
210×121×80
|
|
Working Environment
|
℃
|
-10～45
|
|
N.W
|
Kg
|
1.2
|
