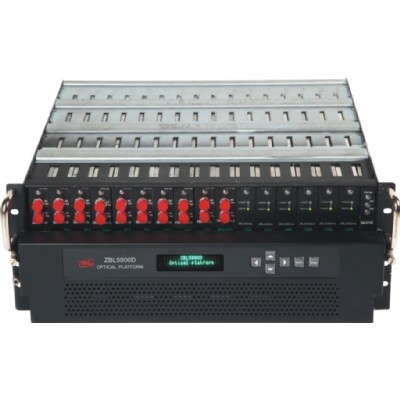

ZBL5000D optical transmission platform is a intensive dedicated system equipment used in all kinds of photoelectric signal transmission for HFC network. Provide a transmitting and receiving integration platform for CATV headend and sub-headend.
Note: 1 optical transmission platform with 16 pcs module plug-in slots, so it max for 16 module working at the same time.
|
Characteristics |
Unit |
Value/Performance |
|
General |
||
|
1.4 RU 19" rack mount frame. Include: - Redundant Power Supply (with 02 Power Supplies). - One monitor module (SNMP module) 2.Support at least 10 application modules (not including 02 power supply modules and 01 SNMP monitoring module) 3. High stable operation, low power. 4.LCD display for display device parameters. |
||
|
Control Interface |
|
RJ45. Support MIB table for SNMP monitoring software |
|
Power Supply |
V |
180 to 240 VAC, 50/60 Hz, or larger |
|
Operating Temperature |
°C |
0 to 50, or larger |
Optical transmission platform basic configuration:
|
Item |
Name |
Qty |
Remark |
|
ZBL5000D |
Optical transmission platform frame(Including ZBL5310C controller module, display key unit) |
1 |
Necessary |
|
WN370T220A |
System power supplier |
1 |
Necessary |
|
WN370T220A |
System power supplier (back-up) |
1 |
Optional(suggested) |
|
ZBL5311TB |
1550nm Forward transmitter module |
1～16 |
Optional # |
|
ZBL5311TC |
1310nm Forward transmitter module |
1～16 |
Optional # |
|
ZBL5311RB |
Forward optical receiver module |
1～16 |
Optional # |
|
ZBL5311RS |
Forward optical receiver module |
1～16 |
Optional # |
|
ZBL5361RB |
Two-way/ Four-way Return optical receiver module |
1～16 |
Optional # |
|
ZBL5355A |
Optical fiber amplifier module |
1～16 |
Optional # |
Note: 1 optical transmission platform with 16 pcs module plug-in slots, so it max for 16 module working at the same time.
