ZBL55080RG/ ZBL55080RG-WDM Micro FTTH Optical Receiver

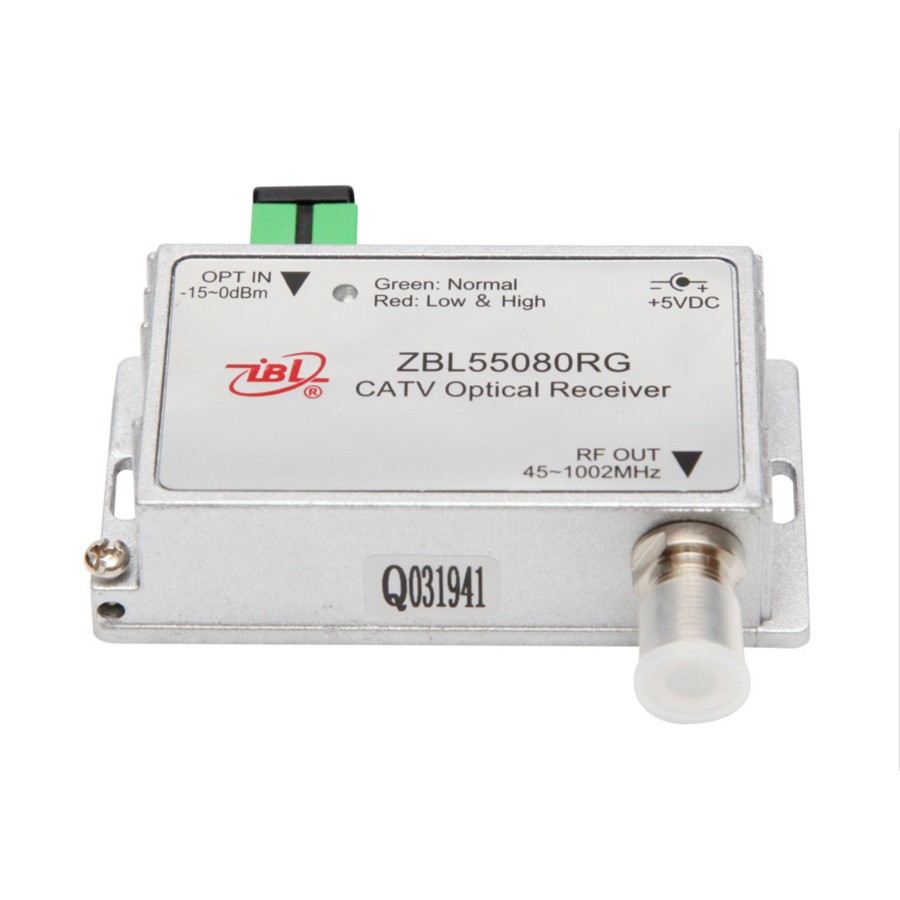

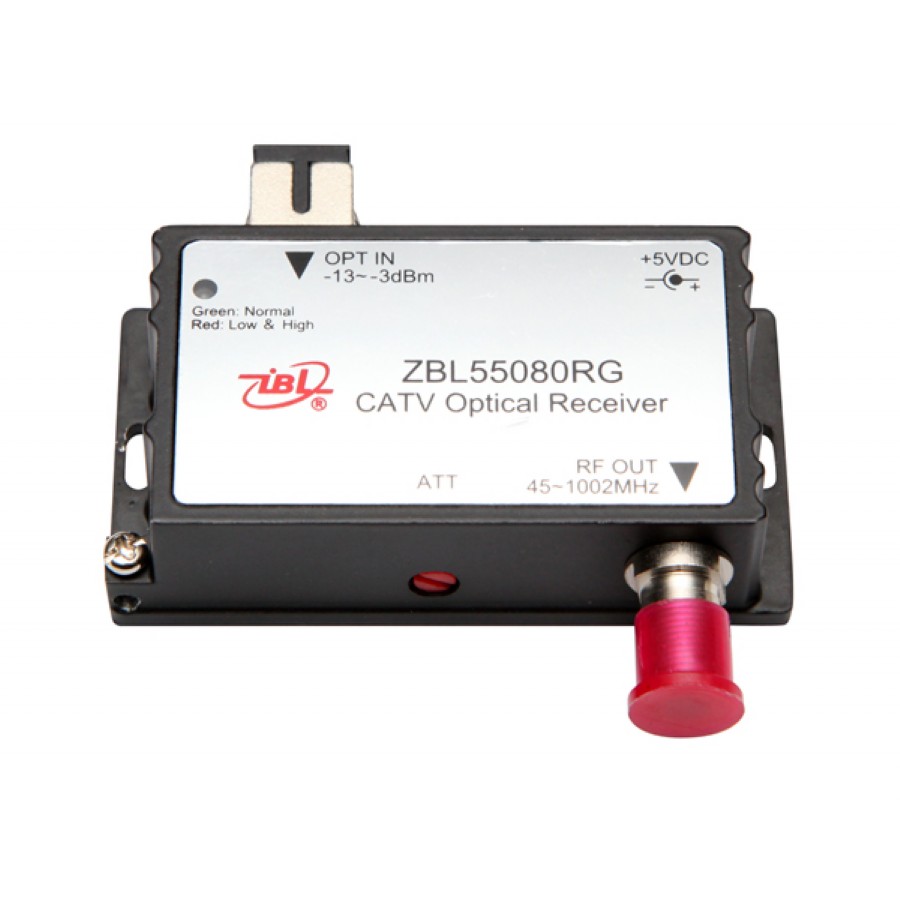

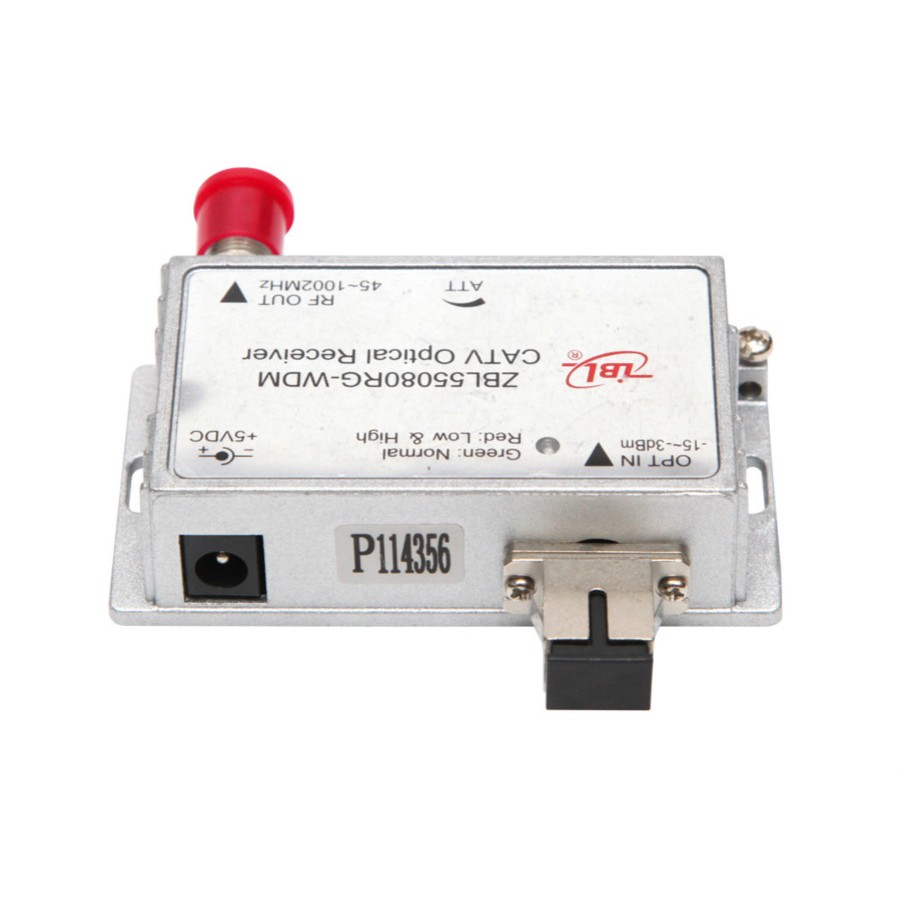

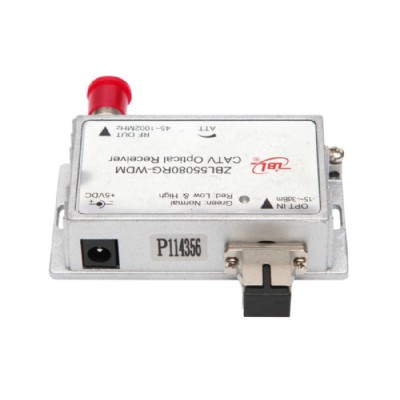

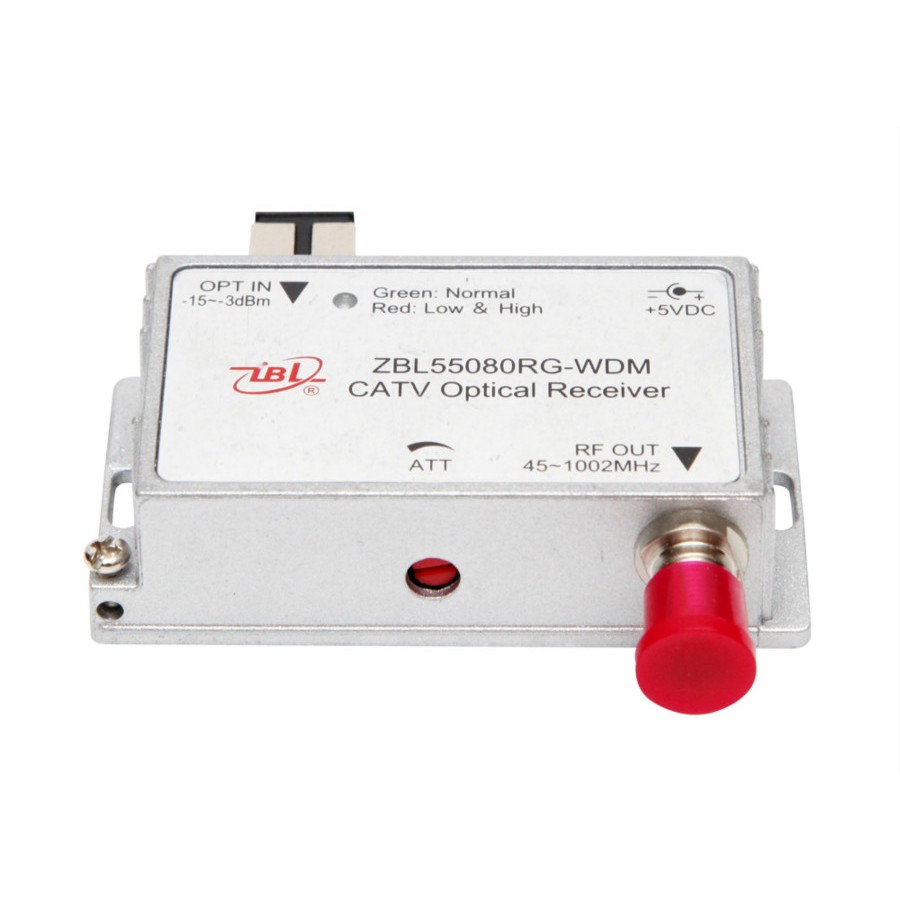

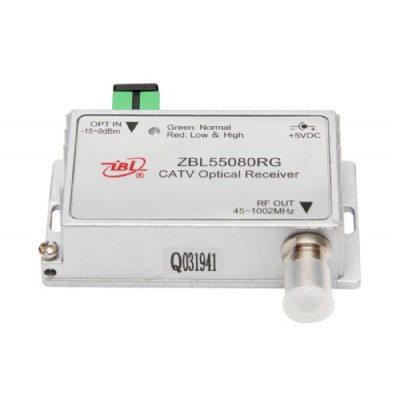

ZBL55080RG/ ZBL55080RG-WDM is a micro optical receiver designed for FTTH(Fiber To The Home) application networks. It is compacted in size and made in die-cast metal housing.ZBL55080RG has 3-stage LED optical input power indicator with SC/APC input connector and one RF output with “F” female connector.

Specifications

Items	Units	Value
Optical Parameters
Optical Input Wavelength1	nm	1100~1650(ZBL55080RG)
Optical Input Wavelength2	nm	1550±10(ZBL55080RG-WDM)
Input Level Range	dBm	-15…-3
AGC Range	dBm	-13...-3
Optical Return Loss	dB	≥40
Max.Input Level (without damaging of photodetector)	dBm	+3
Optical Power Indicator(LED)	/	OFF: Power Off Red:Power On,PIN<-12dBm Green: Power ON,PIN≥-12dBm
Optical Connector	/	SC/APC or FC/APC
RF Parameters
Bandwidth	MHz	45…1002
Output Return Loss	dB	≥14
Flatness of Frequency Response	dB	±1.0
Output Level	dBμV	≥80
C/CTB	dB	≥60*
C/CSO	dB	≥60*
C/N	dB	≥51*
RF Output Stability in AGC range	dB	±2.0
General Parameters
Operating Voltage(external power supply)	VDC	5
Power Consumption	W	2
Output Connector	/	F
Operating Temperature Range	℃	-20…+55
Weight without Power Supply	kg	0.1
Dimension	mm	80.57522.5
