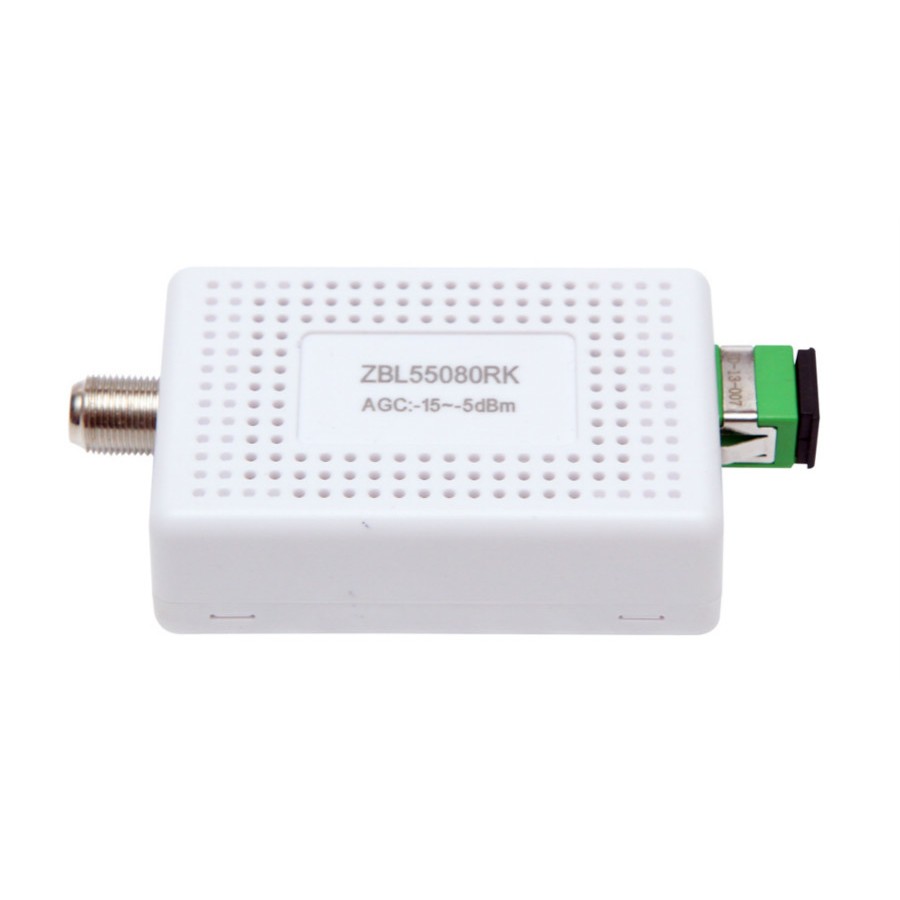

ZBL55080RK is a modem optical receiver designed for FTTH(Fiber To The Home) applications.This device is made in die-cast metal housing and may be mounted in “mouse” type plastic housing. Receiver is equipped with SC/APC input connector and one RF output with “F” female connector. Optical receiver is also equipped with 3-stage LED optical input power indicator.
|
Optical Parameters |
ZBL55080RK |
|
|
Optical input wavelength |
nm |
1310/1550 |
|
Filter wavelength |
nm |
1310±10 & 1490±10 |
|
Input level range |
dBm |
-8…+2 |
|
AGC range |
dBm |
-12…-2 |
|
Optical return-loss |
dB |
≥40 |
|
Max.input level (without danmaging of photodetector) |
dBm |
+2 |
|
Optical power indicator |
dBm |
Diode LED indicator: Red: PIN＞+2 Green: PIN＜+2 OFF：PIN ＜-8 |
|
Optical connector |
/ |
SC/APC |
|
RF Parameters |
||
|
Frequency range |
MHz |
45…1002 |
|
Output return loss |
dB |
≥16 |
|
Flatness of frequency response |
dB |
±1 |
|
output level |
dBuV |
72.5~74.5 |
|
CTB |
dB |
≥65 |
|
CSO |
dB |
≥60 |
|
RF Output Stability in AGC range |
dB |
±1.0 |
|
General Parameters |
||
|
Operating voltage(external power supply) |
V DC |
5 |
|
Power consumption |
W |
1.0 |
|
Output connector |
/ |
F |
|
Operating temperature range |
℃ |
-20…+55 |
|
Weight without power supply |
kg |
0.1 |
|
Dimension(S×W×G) |
mm |
91×45×20.5 |
