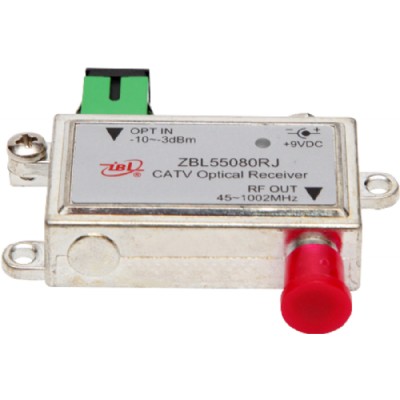

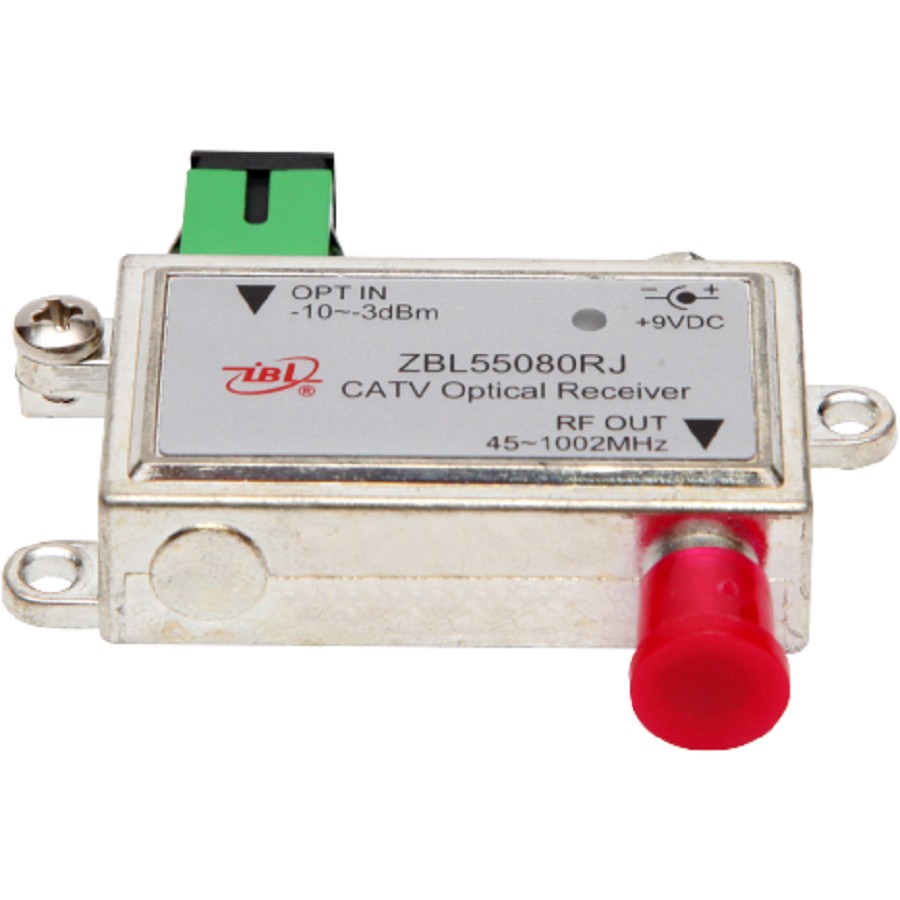

ZBL55080RJ/ZBL55080RJ-WDM is a micro optical receiver designed for FTTH(Fiber To The Home) application networks.It is compacted in size and made in die-cast metal housing.ZBL55080RJ has 3-stage LED optical input power indicator with SC/APC input connector and one RF output with “F” female connector."
Description
ZBL55080RJ/ZBL55080RJ-WDM is a micro optical receiver designed for FTTH(Fiber To The Home) application networks.It is compacted in size and made in die-cast metal housing.ZBL55080RJ has 3-stage LED optical input power indicator with SC/APC input connector and one RF output with “F” female connector.
Specifications
|
Items |
Units |
Value |
|
Optical Parameters |
||
|
Optical Input Wavelength1 |
nm |
1100~1650(ZBL55080RJ) |
|
Optical Input Wavelength2 |
nm |
1550±10(ZBL55080RJ-WDM) |
|
Input Level Range |
dBm |
-9…+2 |
|
AGC Range |
dBm |
-7...0 |
|
Optical Return Loss |
dB |
≥40 |
|
Max.Input Level (without damaging of photodetector) |
dBm |
+3 |
|
Optical Power Indicator(LED) |
/ |
OFF: Power Off Red:Power On,PIN<-9dBm Green: Power ON,PIN≥-9dBm |
|
Optical Connector |
/ |
SC/APC or FC/APC |
|
RF Parameters |
||
|
Bandwidth |
MHz |
45…1002 |
|
Output Return Loss |
dB |
≥14 |
|
Flatness of Frequency Response |
dB |
±1.0 |
|
Output Level |
dBμV |
≥80 |
|
C/CTB |
dB |
≥60* |
|
C/CSO |
dB |
≥60* |
|
C/N |
dB |
≥51* |
|
RF Output Stability in AGC range |
dB |
±2.0 |
|
General Parameters |
||
|
Operating Voltage(external power supply) |
VDC |
9 |
|
Power Consumption |
W |
1.5 |
|
Output Connector |
/ |
F |
|
Operating Temperature Range |
℃ |
-20…+55 |
|
Weight without Power Supply |
kg |
0.1 |
|
Dimension |
mm |
76*63*16 |
* Testing condition:input power@-1dBm,98 CENELEC channels,OMI=3.5%
