1. Imported low-noise、High-performance DFB laser and MMIC(USA brand.).
2. AGC/MGC function. adapt to the RF mutations, stable signal output when different RF input
3. Plug-in 100~240V dual power supply,ensure the safe supply
4. RJ45 Ethernet interface to support the SNMP protocol, WEB page browsing, easy for remote network management
5. With RS232 interface, good interface, easy for users to the local configuration and administration.
Specifications
|
Items |
Value |
Remark |
|
|
Forward Receiver |
Optical Wavelength （nm） |
1310±20 |
Optional |
|
Output Power （dBm） |
6 |
Optional 2、3 |
|
|
Laser type |
|
DFB Laser Module(Emcore， brand name from G7/EU countries) |
|
|
Connector |
SC／APC |
|
|
|
Bandwidth （MHz） |
47~1002 |
|
|
|
Input Level （dBμV） |
80±5 |
|
|
|
Amplifier type |
- Push-Pull 50MHz to 1000MHz High Linearity InGaP HBT Amplifier. - Small Signal Gain (dB): 17. - Gain Flatness (dB): ±0.6. - Output IP3: 41dBm. - Output Power at 1dB Gain Compression: 23dBm. |
MMIC (RFMD, brand name from G7/EU countries) |
|
|
Flatness （dB） |
±1 |
47~1002MHz |
|
|
Return Loss （dB） |
≥14 |
47~1002MHz |
|
|
Attenuation range （dB） |
12 |
±0.5dB |
|
|
AGC/MGC |
Optional |
|
|
|
Input Impedance （Ω） |
75 |
|
|
|
C/N （dB） |
≥48 |
|
|
|
C/CTB （dB） |
≥60 |
|
|
|
C/CSO （dB） |
≥58 |
|
|
|
General Parameters |
Network management |
RJ45 |
- May be monitoring power level before DFB Laser - support the SNMP protocol, WEB page browsing, easy for remote network management. |
|
Power（V） |
100～240 |
Dual Power Supply |
|
|
Comsumption （W） |
≤15 |
|
|
|
Operation Temperature （℃） |
0～40 |
|
|
|
Storage Temperature （℃） |
-20～85 |
|
|
|
Relative Temperature |
20%～85% |
|
|
|
Dimension （mm×mm×mm） |
480×325×44 |
（W） x（D）x（H） |
Model Description
|
Model |
Description |
|

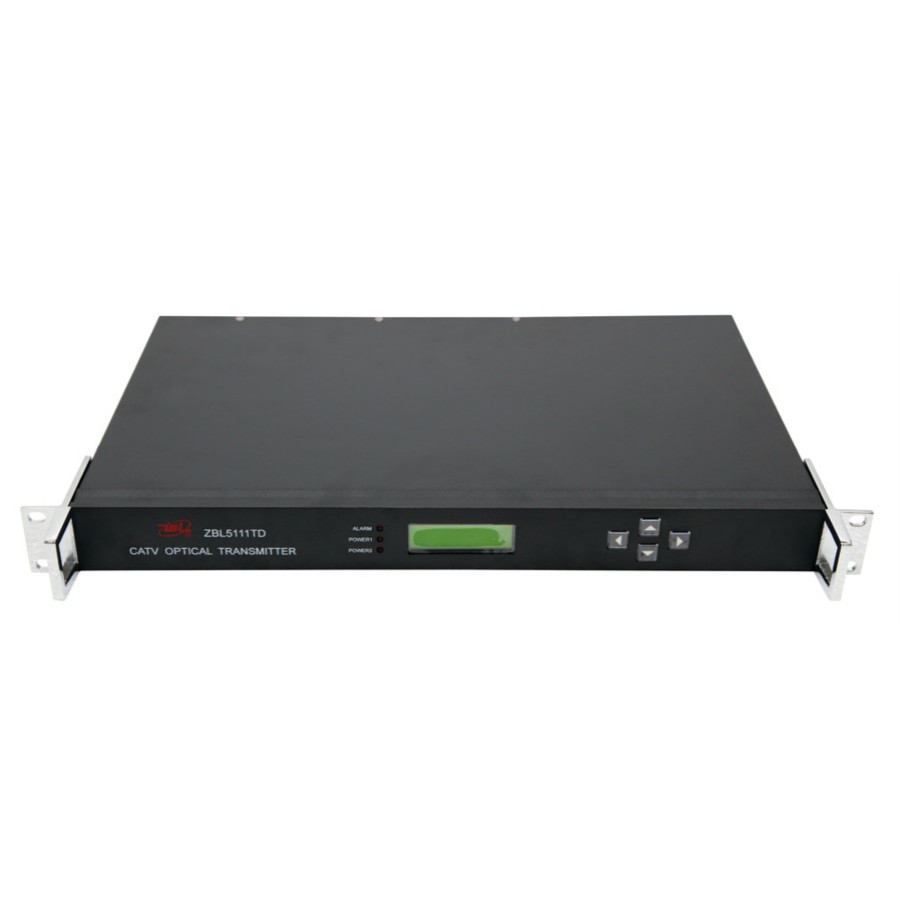

ZBL5111TD-4-2.5 |
Optical Transmitter,47~862MHz/1000MHz ,1310nm, Optical power≥2mW,Dual Power Supply 04 input /04 output |
|
ZBL5111TD-4-3 |
Optical Transmitter,47~862MHz/1000MHz ,1310nm, Optical power≥3mW,Dual Power Supply 04 input/04 output |
|
ZBL5111TD-4-4 |
Optical Transmitter,47~862MHz/1000MHz,1310nm, Optical power≥4mW,Dual Power Supply 04 input/04 output |
|
ZBL5111TD-4-6.3 |
Optical Transmitter.47~862MHz/1000MHz,1310nm, Optical power≥6.3mW,dual power supply , 04 input/04 output |
