Characteristics |
Unit |
Value/Performance |
General |
||

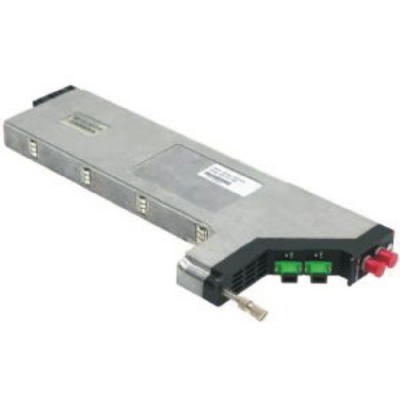

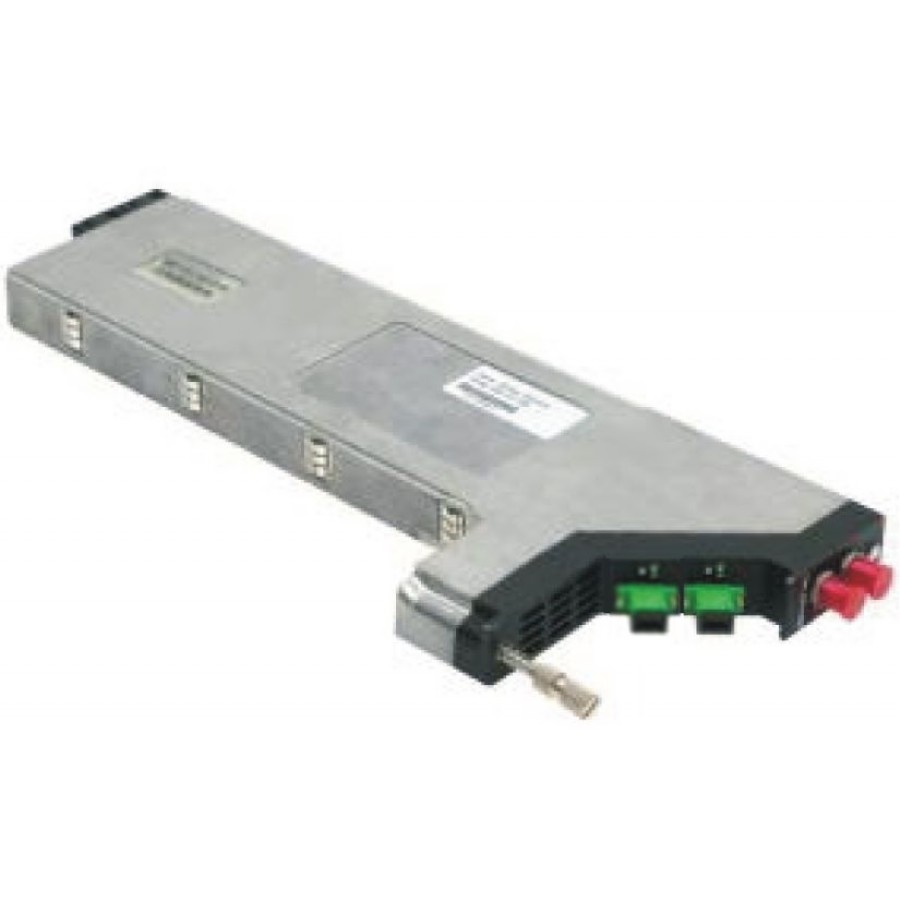

* Module type, fitting the mainframe as attached. * 870MHz Operational Bandwidth. * AGC & MGC Control Mode. * Display Optical input power on LCD display of mainframe. |
||
Optical Parameters |
||
Receiver Type |
- |
Optical Receiver Hybrid Module with brand name from G7/EU countries, 1piece per receive channel (1 piece per Input) |
Wavelength |
nm |
1290 ~ 1600, or larger |
Input Optical Power |
dBm |
-4 to +2, or larger |
Return Loss |
dB |
≥ 45 |
Connector |
- |
SC/APC (sleeve material: ceramic, connector with shutter) |
Configuration |
- |
Dual inputs (dual receiver modules) for auto backup, with RF A/B automatic switch |
RF Parameters |
||
RF Amplifier Technology |
- |
1 * CATV GaAs Hybrid Amp. Module at RF output stage, brand name from G7/EU countries |
RF Output Level |
dBmV/channel |
≥ 36 @ -1 dBm optical input, flat |
RF Output Nominal Impedance |
Ω |
75 |
RF Output Return Loss |
dB |
≥ 16 |
Operating Bandwidth |
MHz |
82 to 870, or larger |
Flatness |
dB |
≤ ± 0.75 |
Gain Control |
dB |
0 ~ 10, or larger |
Slope Adjust |
dB |
-1 to 2, or larger |
Operating Temperature |
°C |
0 to 50, or larger |
