Characteristics |
Unit |
Value/Performance |
General |
||

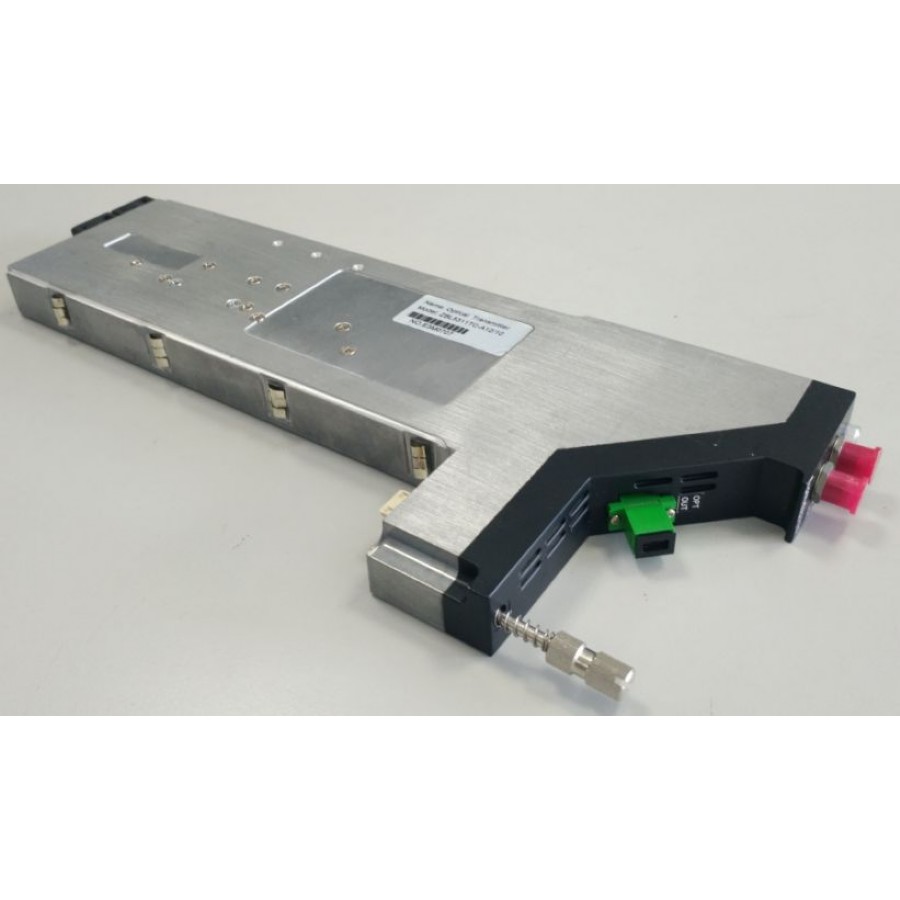

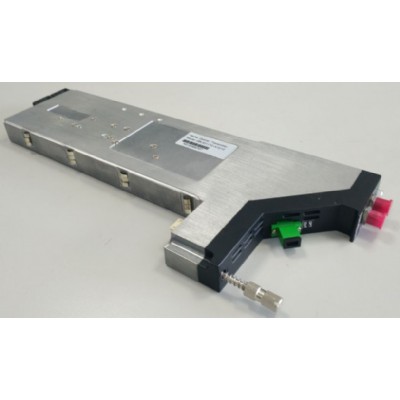

* Module type, fitting the mainframe as attached * 870 MHz forward bandwidth. * High quality linear pre-distortion circuit. * 6.3 mW optical output power. * AGC / MGC, auto setup. |
||
Optical Parameters |
||
Laser Type |
- |
DFB Laser Module (OC-48 pinout compatible), with Isolator, with CNR = 51 dB min., CSO = 60 dB min., CTB = 65 dB min., brand name from G7/EU countries |
Center Wavelength |
Nm |
1310 ± 10 |
Connector |
- |
SC/APC (sleeve material: ceramic, connector with shutter) |
Output Power ( min) |
mW |
6.3 (8 dBm) |
RF Parameters |
||
Input Level |
dBmV/ch |
15 to 25, or larger |
RF Amplifier Technology |
- |
2 amplifier stages (CATV GaAs or GaN Amp. MMIC+CATV GaAs or GaN Power Doubling Amp. Modules; or CATV GaAs or GaN Push-Pull Amp. + CATV GaAs or GaN Power-Doubler Amp. Modules. All with brand name from G7/EU countries) |
Gain Control Range |
dB |
0 ~ 10, or larger |
Input Impedance |
Ω |
75 |
Return loss |
dB |
≥ 16 |
Bandwidth |
MHz |
82 to 870, or larger |
Flatness |
dB |
≤ ± 0.75 |
Channel Loading |
- |
77 NTSC / 60 PAL channels + 320 MHz digital channels |
Link Performance |
||
(Test at temperature 25 degree C, 77 NTSC channels / 60 PAL channels Loading) |
|
|
CNR |
dB |
≥ 52 @ link loss = 9 dB (Pout = 8 dBm) / 14 dB (Pout = 13 dBm) |
≥ 51 @ link loss = 10 dB (Pout = 8 dBm) / 15 dB (Pout = 13 dBm) |
||
CSO |
dB |
≤ -63 |
CTB |
dB |
≤ -65 |
Operating Temperature |
°C |
0 to 50, or larger |
