Characteristics |
Unit |
Value/Performance |
General |
||

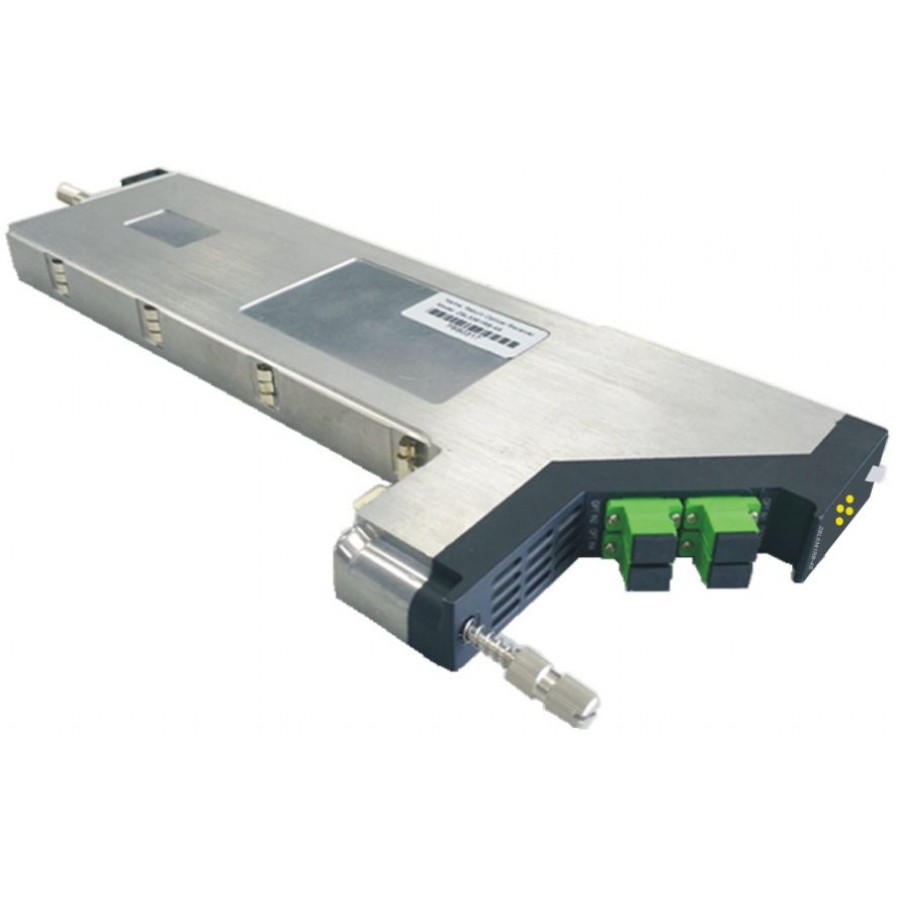

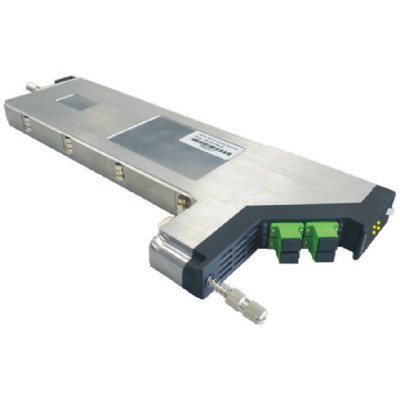

* Module type, fitting the mainframe as attached * 120 MHz Operational Bandwidth. * Display optical input power on LCD display of mainframe. |
||
Optical Parameters |
||
Photodiode Type |
- |
InGaAs PIN Photodiode, brand name from G7/EU countries |
Optical Wavelength |
nm |
1290 ~ 1600, or larger |
Connector |
- |
SC/APC (sleeve material: ceramic, connector with shutter) |
Optical Input Range |
dBm |
-12 to +3, or larger |
Configuration |
- |
4 x individual inputs (4 x InGaAs PIN Photodiodes) |
RF Parameters |
||
Operating Bandwidth |
MHz |
5 to 120, or higher |
RF Output Nominal Impedance |
Ω |
75 |
RF Output Return Loss |
dB |
≥ 16 |
RF Output level |
dBmV |
≥ 35 @ -12 to +3 dBm Optical Input. |
RF Amplifier Technology |
- |
4 * Multi-stage MMIC / Hybrid Amp. Modules, brand name from G7/EU countries |
Gain Control Range |
dB |
0 ~ 10, or larger |
Flatness |
dB |
≤ ± 0.75 |
Operating Temperature |
°C |
0 to +50, or larger |
