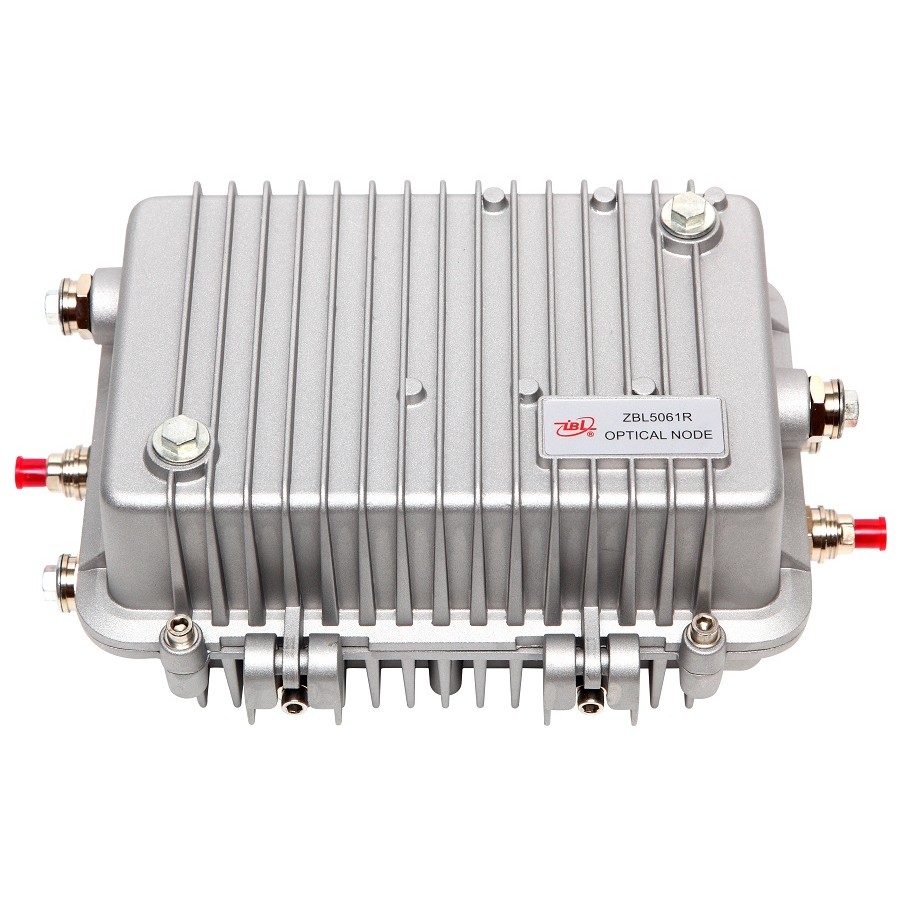

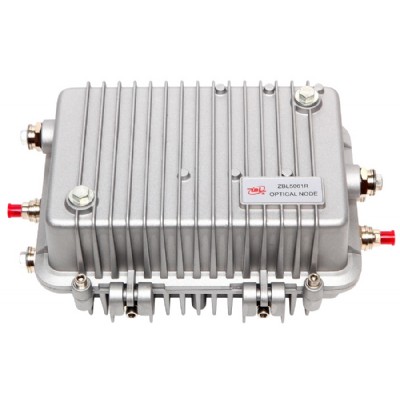

Integrated aluminum die-cast enclosure with excellent waterproof and heat dispersion

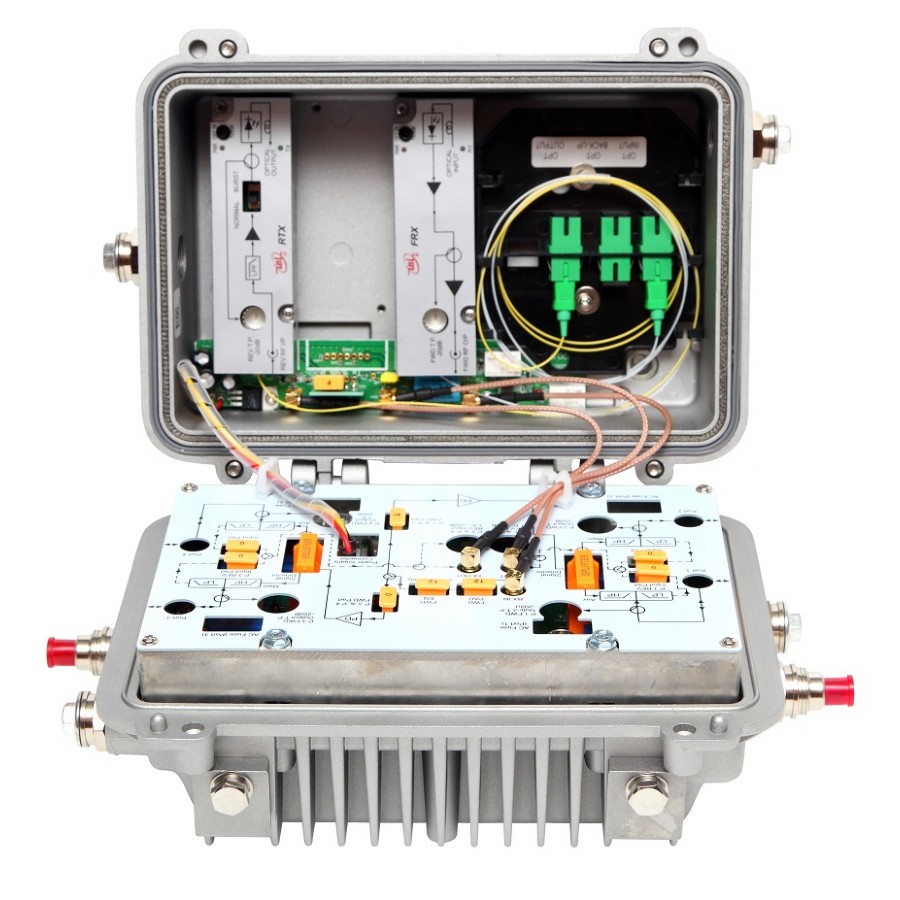

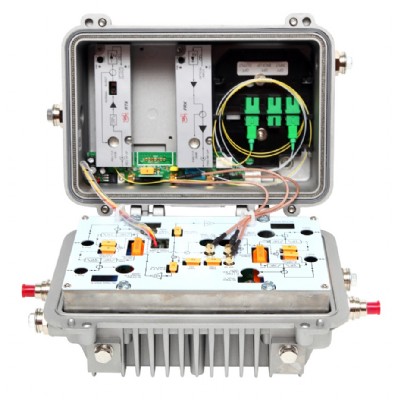

Inner liner amplifier unit, plug-in forward optical receiving module, and return optical transmitting module
High output and low distortion
”Burst mode” and “Normal mode” switchable
|
|
Item |
Specification |
|
Model |
ZBL5061RD-2D |
|
|
Forward |
Optical Wavelength |
1290~1600nm |
|
Optical Input Power |
-4~+2dBm |
|
|
Optical AGC |
- |
|
|
Frequency Range |
82/104~1002MHz |
|
|
RF Output Level |
≥52dBmV(@15dB slope) |
|
|
Flatness |
±0.75dB |
|
|
Output Return Loss |
≥16dB |
|
|
Slope |
0~16.5dB |
|
|
Gain Control |
0~20dB |
|
|
C/N* |
≥51dB |
|
|
CTB* |
≤-63dBc |
|
|
CSO* |
≤-63dBc |
|
|
Optical Return Loss |
≥45dB |
|
|
Return Transmitter |
Optical Wavelength |
1310/1550/1610±10nm |
|
Optical Output Power |
1/2/3mW |
|
|
Frequency Range |
5~42/65/85MHz |
|
|
RF Input Level |
15~25dBmV |
|
|
Flatness |
±0.75dB |
|
|
Input Return Loss |
≥16dB |
|
|
Optical Return Loss |
≥45dB |
|
|
Burst Mode |
ON Level |
12±2dBmV |
|
OFF Level |
0±2dBmV |
|
|
Time to 90％ optical ON |
≤1.3μs |
|
|
Time for optical falls to 10％ |
≤1.6μs |
|
|
General Parameters |
Voltage |
40~90V |
|
Power |
38W |
|
|
Working Temperature |
-20~+65℃ |
|
|
Dimension |
257 mm×172 mm×142 mm |
*Testing condition：10Km fiber cable, Input Level:20dbmV/Analog channel (77NTSC/60PAL analog channels) + up to 450MHz digital channels.
