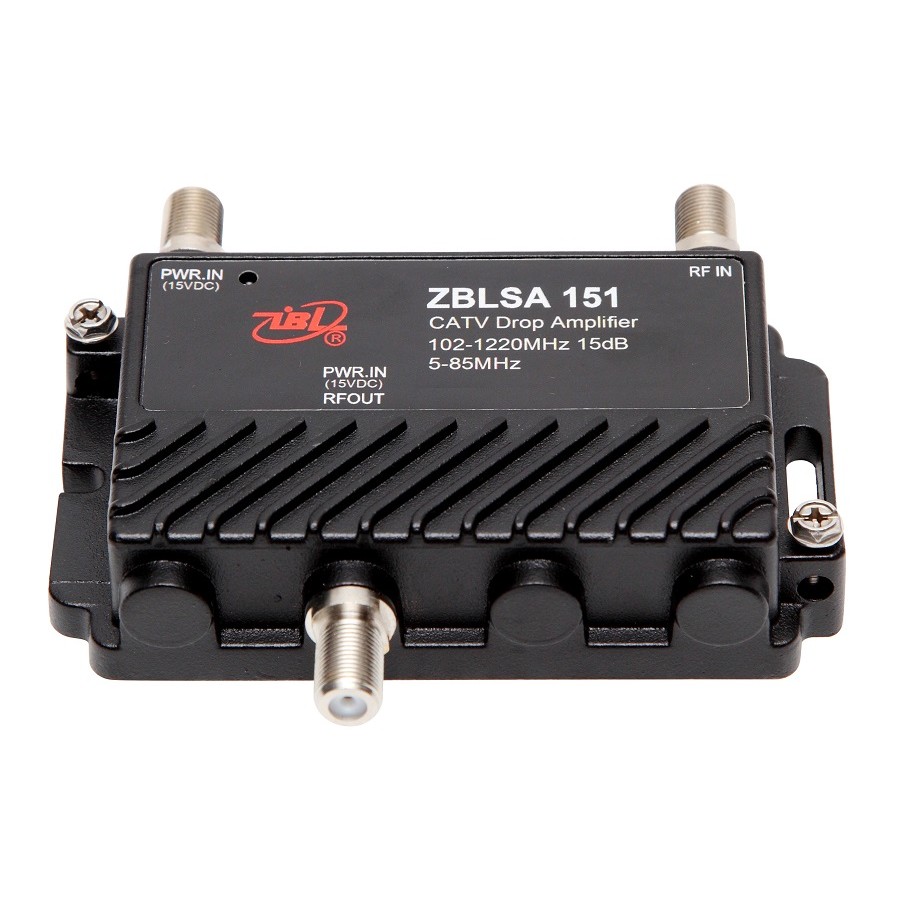

Small size, aluminum alloy die-cast, sealed for excellent waterproof
DOCSIS3.1 compatible
Frequency splits 42/54MHz, 65/85MHz, 85/102MHz and 204/258MHz optional
|
|
Item |
Specification |
|
|
Model |
ZBLSA151 |
|
Forward Path |
Frequency Range |
54/85/102/258~1220MHz |
|
Gain |
≥13dB |
|
|
Flatness |
±1dB |
|
|
Return Loss |
≥18dB |
|
|
Adjustable ATT |
- |
|
|
CTB |
≤-70dBc* |
|
|
CSO |
≤-62dBc* |
|
|
Noise Figure |
≤4dB |
|
|
Group Delay（3.58MHz bandwidth） |
≤20ns |
|
|
Return Path |
Frequency Range |
5~42/65/85/204MHz |
|
Gain |
- |
|
|
Insertion Loss |
≤2dB |
|
|
Flatness |
±0.75dB |
|
|
Return Loss |
≥18dB |
|
|
Adjustable ATT |
- |
|
|
DSO |
- |
|
|
DTO |
- |
|
|
Noise Figure |
- |
|
|
Group Delay（1.5MHz bandwidth） |
≤20ns |
*Test conditions: Multi channel signal source status: 79 channel output 70dBmV signals, while the other channels output 64dBmV signals.
#Test conditions: Input 13MHz&19MHz signal, amplifier output level 118dBmV, DSO test frequency point 6MHz&32MHz, DTO test frequency point 7MHz&25MHz.
