Small size, aluminum alloy die-cast, sealed for excellent waterproof
Eight RF output ports, DOCSIS3.1 compatible
Frequency splits 42/54MHz, 65/85MHz, 85/102MHz and 204/258MHz optional
ZBLRSA008 series has an independent telephone port that can provide voice and data lifeline services in the event of a power outage
|
|
Item |
Specification |
|
|
|
Model |

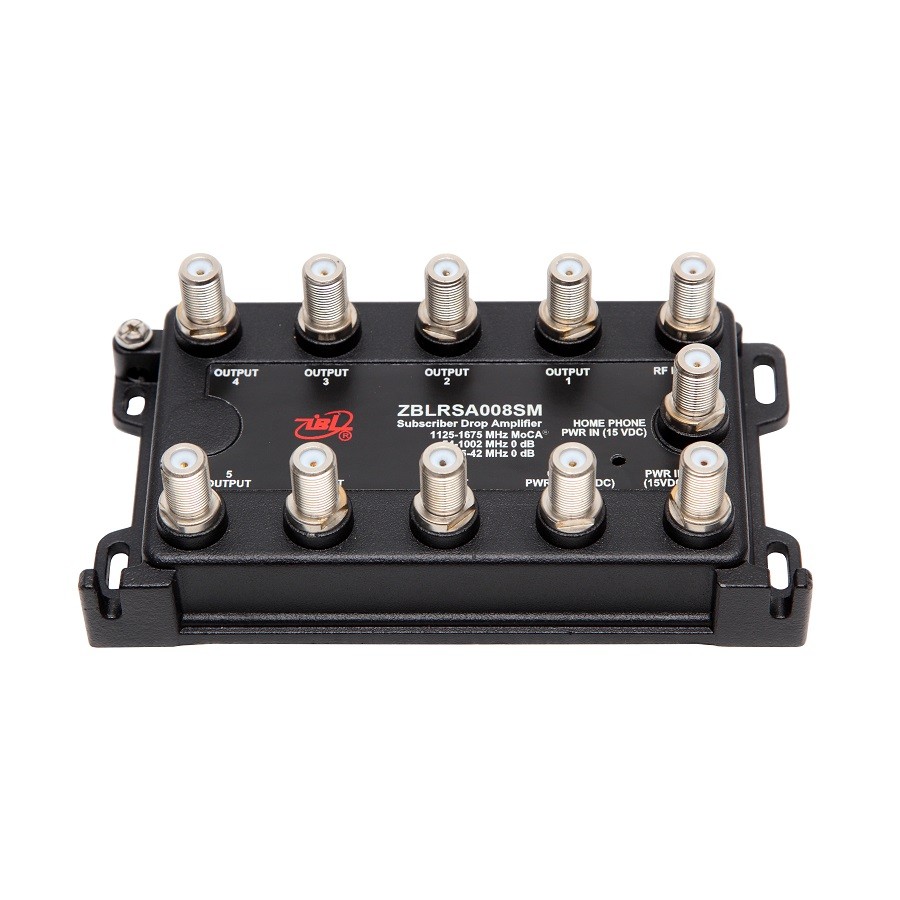

ZBLRSA008SM |
|
|
Forward Path |
Frequency Range |
54/85/102/258~1002MHz |
|
|
Gain |
≥-0.5dB |
||
|
Flatness |
±0.8dB |
||
|
Insertion Loss |
≤4dB |
||
|
Return Loss |
≥18dB |
||
|
Isolation |
54/85/102/258~1002MHz |
≥24dB |
|
|
1002~1220MHz |
- |
||
|
CTB |
≤-70dBc * |
||
|
CSO |
≤-62dBc * |
||
|
Noise Figure |
≤10dB |
||
|
Group Delay（3.58MHz bandwidth） |
≤20ns |
||
|
Return Path |
Frequency Range |
5~42/65/85/204MHz |
|
|
Gain |
≥-0.5dB |
||
|
Insertion Loss |
≤4dB |
||
|
Flatness |
±0.75dB |
||
|
Return Loss |
≥18dB |
||
|
Isolation |
≥24dB |
||
|
DSO |
≤-65dBc ※ |
||
|
DTO |
≤-57dBc ※ |
||
|
Noise Figure |
≤16.5dB |
||
|
Group Delay（1.5MHz bandwidth） |
≤20ns |
||
|
MoCA Band |
Frequency Range |
1125~1675MHz |
|
|
Insertion Loss (OUT-OUT) |
≤42dB |
||
|
RF IN - RF OUT |
Downstream |
≥26dB |
|
|
Upstream |
≥36dB |
||
*Test conditions: Multi channel signal source status: 79 channel output 74dBmV signals, while the other channels output 68dBmV signals.
#Test conditions: Multi channel signal source status: 79 channel output 70dBmV signals, while the other channels output 64dBmV signals.
※Test conditions: Input 13MHz&19MHz signal, amplifier output level 115dBmV, DSO frequency point 6MHz&32MHz, DTO test frequency point 7MHz&25MHz.
