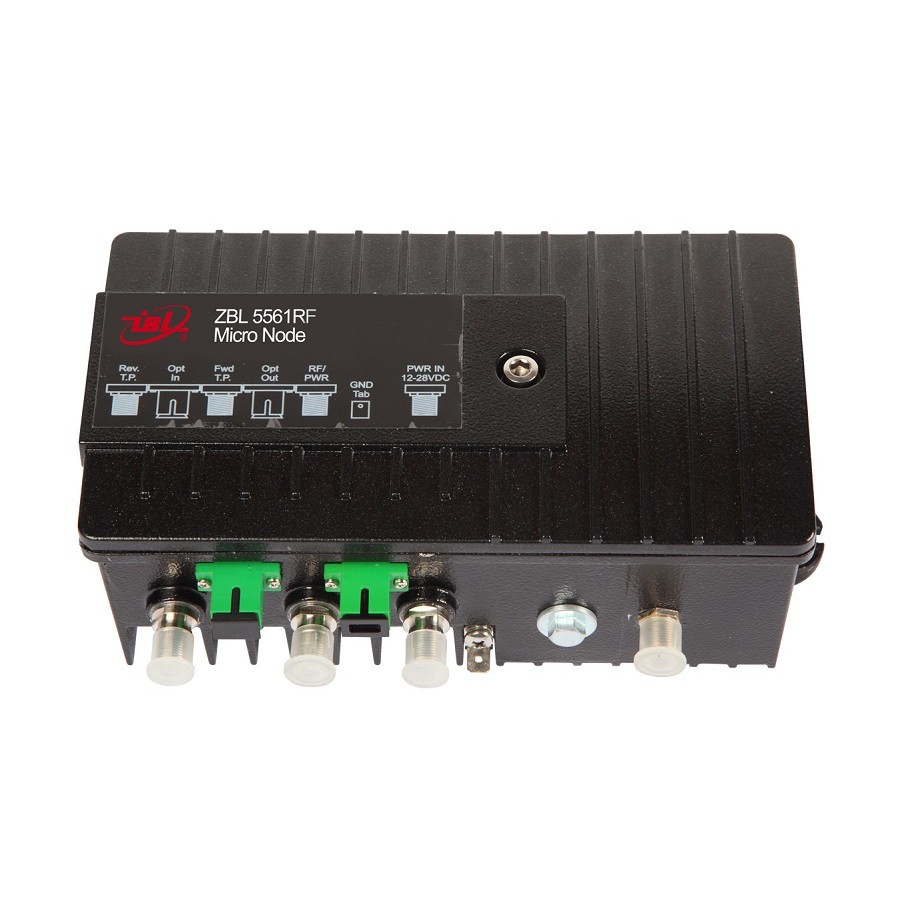

1.Design for FTTB networks
2.High output level with AGC function
3.Display TX/RX LEDs indicate wotking condition
4.Low power consumption, compact in size
|
Items |
Units |
Value |
Remark |
||||
|
Min. |
Typ. |
Max. |
|||||
|
Forward |
Wavelength |
(nm) |
1200 |
|
1620 |
|
|
|
Optical Input Power |
(dBm) |
-8 |
|
+2 |
|
||
|
Bandwidth* |
(MHz) |
102 |
|
1218 |
*54MHz,85MHz optional |
||
|
Output Level |
(dBmV) |
|
50 |
|
@1218MHz |
||
|
Slope |
(dB) |
|
15 |
|
|
||
|
Flatness |
(dB) |
|
±1 |
|
|
||
|
Return Loss |
(dB) |
14 |
16 |
|
102-550MHz≥16 |
||
|
550-1218MHz≥14 |
|||||||
|
C/N |
(dB) |
50 |
|
|
-1dBm@PAL 98 Chanel type testing |
||
|
C/CTB |
(dB) |
65 |
|
|
|||
|
C/CSO |
(dB) |
60 |
|
|
|||
|
Return |
Wavelength* |
(nm) |
|
CWNM |
|
*such as 1310nm、1610nm，etc |
|
|
Input Power |
(mW) |
|
2 |
|
|
||
|
Frequency |
(MHz) |
5 |
|
85 |
*5～42/65MHz optional |
||
|
RF Input Level |
(dBmV) |
|
25 |
|
|
||
|
Flatness |
(dB) |
|
±1 |
|
|
||
|
Return Loss |
(dB) |
14 |
16 |
|
|
||
|
General |
PS |
DC |
(V) |
12 |
|
30 |
|
|
Consumption |
(W) |
|
|
10 |
|
||
|
Working Temperature |
(℃) |
-20 |
|
65 |
|
||
|
Humidity |
(℃) |
5 |
|
95 |
|
||
|
Dimension |
(mm) |
225×122×82 |
(W)×(D)×(H) |
||||
|
Net Weight |
(kg) |
1.5 |
|
||||
