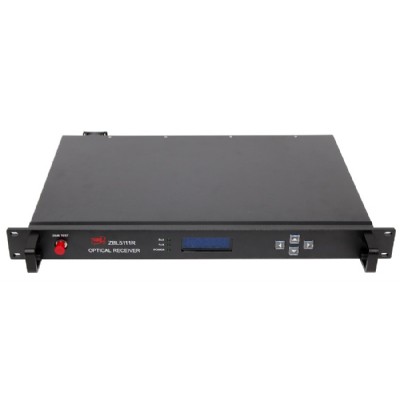

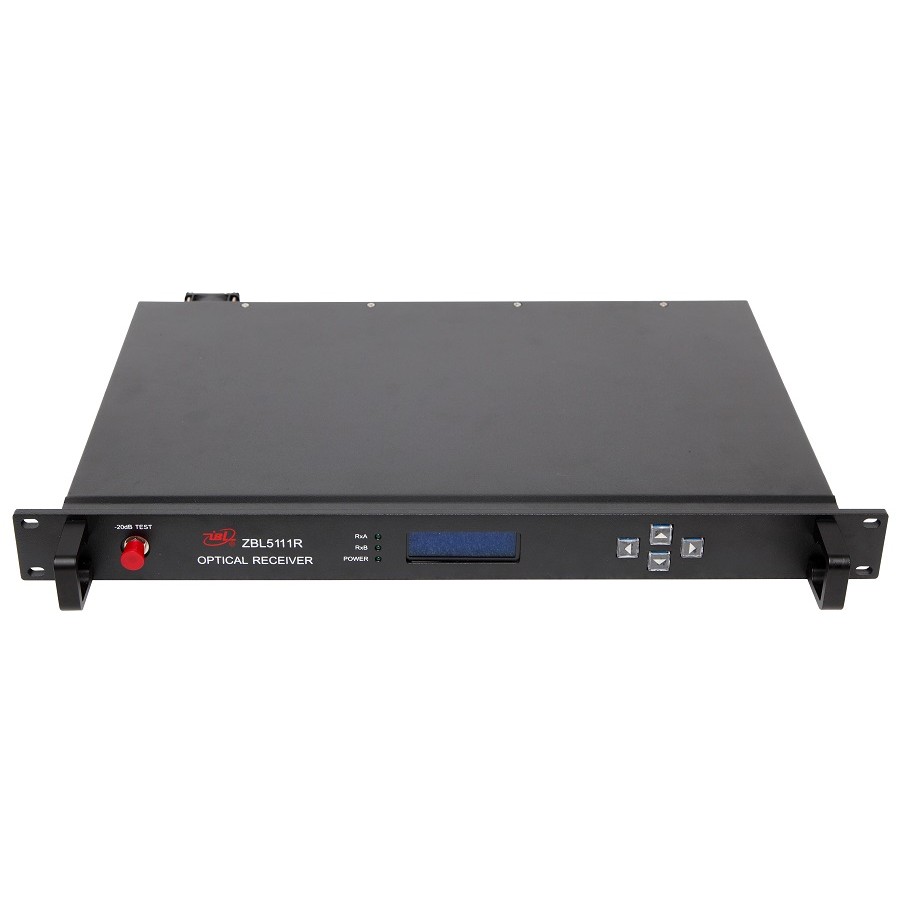

Features
1 Two-path high-performance, low-noise photoelectric integrated module.
2 Automatic switching function between the Main and Backup paths.
3 Output level is adjustable in the range of 0~10dB (1dB step).
4 Equalization is adjustable in the range of -2~+5dB (1dB step).
5 Parameters can be checked or adjusted in real time through the LCD screen.
6 The intelligent exhaust air of the temperature-controlled fan is adopted.
7 Provides RS232 interface and network management.
Item |
Units |
Value |
|
Optical parameter |
|||
Optical Wavelength |
nm |
1100~1650 |
|
Receiving optical power range |
dBm |
-8~+3 (typical value:-1dBm) |
|
Optical AGC range |
dBm |
-6~+2 |
|
Optical Return Loss |
dB |
>45 |
|
Optical Connector |
/ |
SC/APC |
|
RF parameters |
|||
Frequency response bandwidth |
MHz |
45~1002 |
|
Nominal output level |
dBμV |
≥96 |
|
Adjustable attenuator |
dB |
0~10(step 1dB) |
|
Adjustable equalizer |
dB |
-2~+5(step 1dB) |
|
Nominal RF output impedance |
W |
75 |
|
RF output reflection loss |
dB |
≥16 |
|
Flatness |
dB |
±0.75 |
|
Two-channel RF isolation |
|
dB |
≥35 |
TEST port level detection |
|
dB |
-20±1 |
Link performance (note) |
|||
C/N |
|
dB |
≥51 |
C/CTB |
|
dB |
≥65 |
C/CSO |
|
dB |
≥60 |
General Parameters |
|||
Main power consumption |
A |
1.0 @+24V |
|
0.45@+5V |
|||
Working environment temperature |
℃ |
0~+50 |
|
Storage temperature |
℃ |
-25~+85 |
|
Outline (Standard 1U case) |
mm |
480*280*44 |
Note:
1. A standard optical transmitter (OMI=3.5%) is used for the test, and the test is carried out under the estimated link loss value of the standard optical transmitter.
2. The output level of the 98-channel signal generator is used for testing. The output level of the first 59 channels (45~550MHz) is 10dB higher than the output level of the second 39 channels (550~1002MHz). And the receiving optical power is -1dbm.
