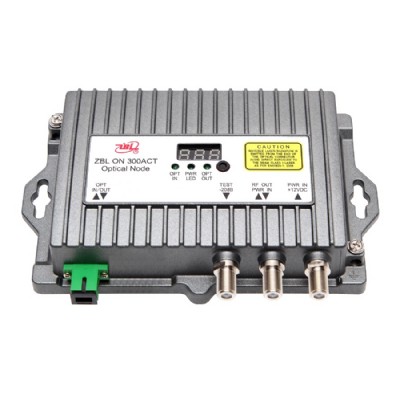

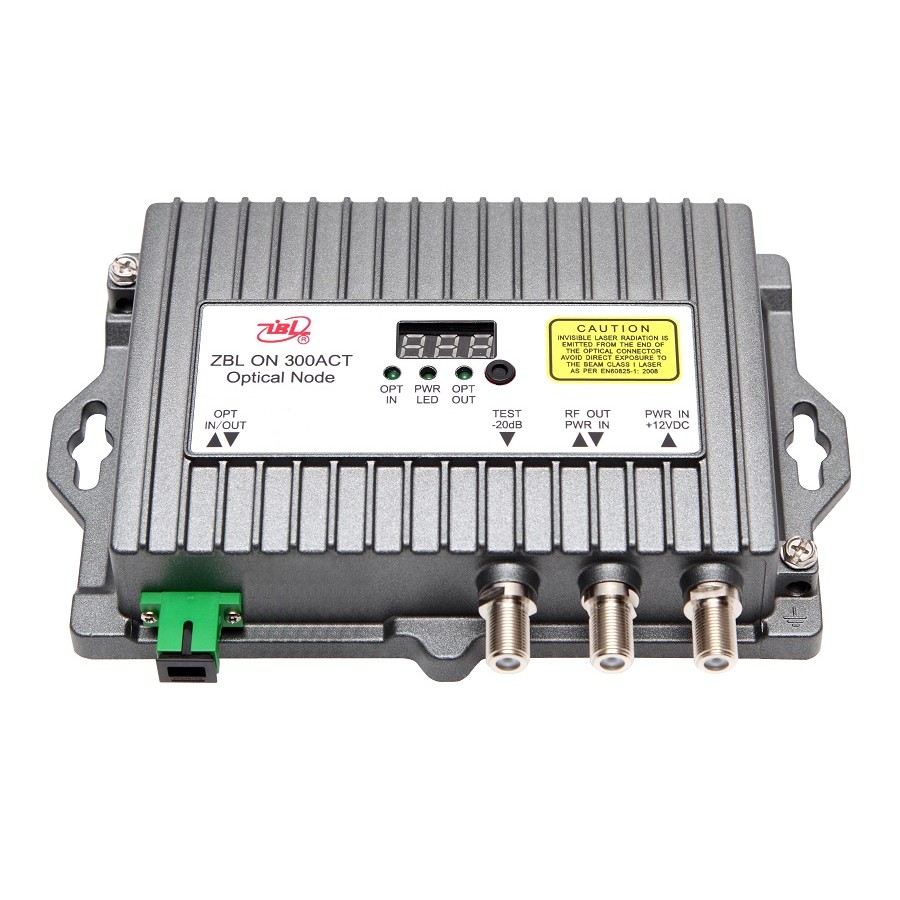

ZBL-ON-300ACT mini optical node (OBI-free) is a bi-directional optical node by WDM transmission, which is the ideal platform for delivering video (digital or analog) as well as high-speed data services over advanced hybrid fiber/coax (HFC) network; this optical node combines the superior proven technologies of both the RF amplifier and optical components.
It has -6～+2dBm optical AGC and reasonable level output with 5±2dB slope.
In the return path, each Node can provide 8 or 16 stable Laser wavelength by 0.5nm or 0.25nm step for choice, Automatic Optical Control is designed on the circuit that reduces the return noise effectively, to lower the power consumption and prolong the working life.
ZBL-ON-300ACT is compact in size, high performance and high reliability, and can provide the full complement of functions required by advanced networks.
|
SYMBOL |
PARAMETER |
CONDITIONS |
MIN |
TYP |
MAX |
UNIT |
|
Forward Receiver |
||||||
|
λ |
Optical Wavelength |
|
1540 |
1550 |
1560 |
nm |
|
Vopt.in |
Monitor Voltage |
λ=1550 |
|
1 |
|
V/mW |
|
Pin |
Optical Input Power |
Continuous |
-6 |
-1 |
2 |
dBm |
|
F |
Frequency Range (optional) |
(Note1) |
102 |
|
1218 |
MHz |
|
FL |
Flatness of Frequency Response |
f=102 to 1218MHz |
|
±0.75 |
|
dB |
|
S22 |
Output Return Loss |
|
14 |
16 |
|
dB |
|
Lo |
Reference Output Level |
(Note2) |
|
21.3 |
|
dBmV |
|
|
Optical Input Return Losses |
|
45 |
|
|
dB |
|
C/N |
C/N |
98 Pal-D channel loading, |
50 |
|
|
dB |
|
CTB |
CTB |
|
|
-65 |
dB |
|
|
CSO |
CSO |
|
|
-60 |
dB |
|
|
f |
Equivalent Noise Input |
f=110MHz |
|
|
7 |
pA/Hz |
|
Return Transmitter |
||||||
|
λ |
Optical Wavelength |
Note(3) |
1600 |
1610 |
1620 |
nm |
|
△λ |
Optical Wavelength shifting |
|
-0.05 |
|
+0.05 |
nm |
|
Wout |
Optical Output Power |
|
1 |
2 |
3 |
dBm |
|
LRin |
RF Input Level |
|
20 |
|
40 |
dBmV |
|
F |
Frequency Range (optional) |
|
5 |
|
85 |
MHz |
|
FL |
Flatness of Frequency Response |
f=5 to 85MHz |
|
±0.75 |
±1 |
dB |
|
S11 |
Input Return Loss |
f=5 to 85MHz |
14 |
16 |
|
dB |
|
|
Optical Output Return Loss |
|
45 |
|
|
dB |
|
Burst Mode* |
||||||
|
P-ON |
Power at which optical turn ON |
(Note4) |
|
15 |
|
dBmV |
|
P-OFF |
Power at which optical turn OFF |
(Note4) |
|
-4 |
|
dBmV |
|
T-ON |
Time to 90％ optical ON |
|
|
|
1.3 |
ms |
|
T-OFF |
Time for optical falls to 10％ |
|
|
|
1.6 |
ms |
|
General Paramters |
||||||
|
Itot |
Total Current Consumption (DC) |
V+=12V |
|
|
10 |
W |
|
Tmb |
Operating Mounting Base Temperature |
|
-20 |
|
55 |
℃ |
|
Dim |
Dimensions |
(L×W×H) |
194×110×39 |
mm |
||
Note1：102 to 1218MHz:different frequency is available (e.g.54 to 1002MHz).
Note2：The power output is measured at 1218MHz.
Note3：1610nm DWDM，0.5nm or 0.25nm Step.
Note4：Burst mode parameter can be adjustable according to customer's request.
