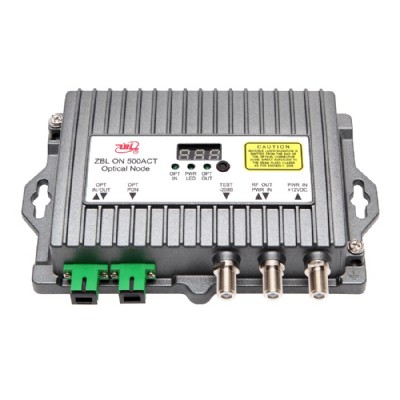

ZBL-ON-500ACT

1.CATV Bi-directional in one fiber port,another port for PON pass through.

2.Internal WDM to add 1G/10G PON wavelengths of 1310nm&1490nm10G and 1270nm&1577nm.

3.Burst mode operation.

4.Automatic Gain Control function.

5.the superior proven technologies of both the RF amplifier and optical components.

6.Automatic Optical Control is designed to reduce the return noise effectively.

7.Low power consumption, compact in size.

Specifications

SYMBOL

PARAMETER

CONDITIONS

MIN

TYP

MAX

UNIT

FC

Drop Wavelength Band- Forward



1540



1560

nm

RL

Add Wavelength Band- Return



1600



1620

nm

FS

Pass Wavelength- Forward



1475



1500

nm

FS

Pass Wavelength- Forward



1560



1600

nm

RO

Pass Wavelength Band- Return



1260



1360

nm

ILP

Pass Band Insertion Loss







1

dB

XP-AD

Pass to Add-Drop Crosstalk

Both directions

35





dB

XFR

Forward to Return Crosstalk

Both directions

35





dB

Forward  Receiver

λ

Optical Wavelength



1540

1550

1560

nm

Vopt.in

Monitor Voltage

λ=1550



1



V/mW

Pin

Optical Input Power

Continuous

-6

-1

2

dBmW

F

Bandwidth(optional)

(Note1)

54



1002

MHz

FL

Flatness of Frequency Response

f=54 to 1002MHz



±0.75

±1

dB

S22

Output Return Loss



14

16



dB

Lo

Reference Output Level

(Note2)



20



dBmV



Slope





5



dB



Optical Input Return Losses



45





dB

C/N

C/N

98 Pal-D channel loading,
10dB low above 550MHz
(-1dBm Optical Input)

50





dB

CTB

CTB





-65

dB

CSO

CSO





-60

dB

f

Equivalent Noise Input

f=55MHz





7

pA/Hz

Return Transmitter

λ

Optical Wavelength



1600

1610

1620

nm

Wout

Optical Output Power



0.5

1

3

mW

LRin

RF Input Level



10

25

40

dBmV

F

Bandwidth(optional)



5



42

MHz

FL

Flatness of Frequency Response

f=5 to 42MHz



±0.75

±1

dB

S11

Input Return Loss

f=5 to 42MHz

14

16



dB



Optical Output Return Loss



45





dB

P-ON

Power at which optical turn ON

(Note3)



15



dBmV

P-OFF

Power at which optical turn OFF

(Note3)



-4



dBmV

T-ON

Time to 90% optical ON







1.3

ms

T-OFF

Time for optical falls to 10%







1.6

ms

General Parameters

Itot

Total Current Consumption (DC)

V+=12V



280



mA

Tmb

Operating Mounting Base Temperature



-20



55

Note1:54 to 1002MHz:different frequency is available (e.g.85 to 1218MHz).

Note2:The power output is measured at 1002MHz.

Note3:Burst mode parameter can be adjustable according to customer's reques.
