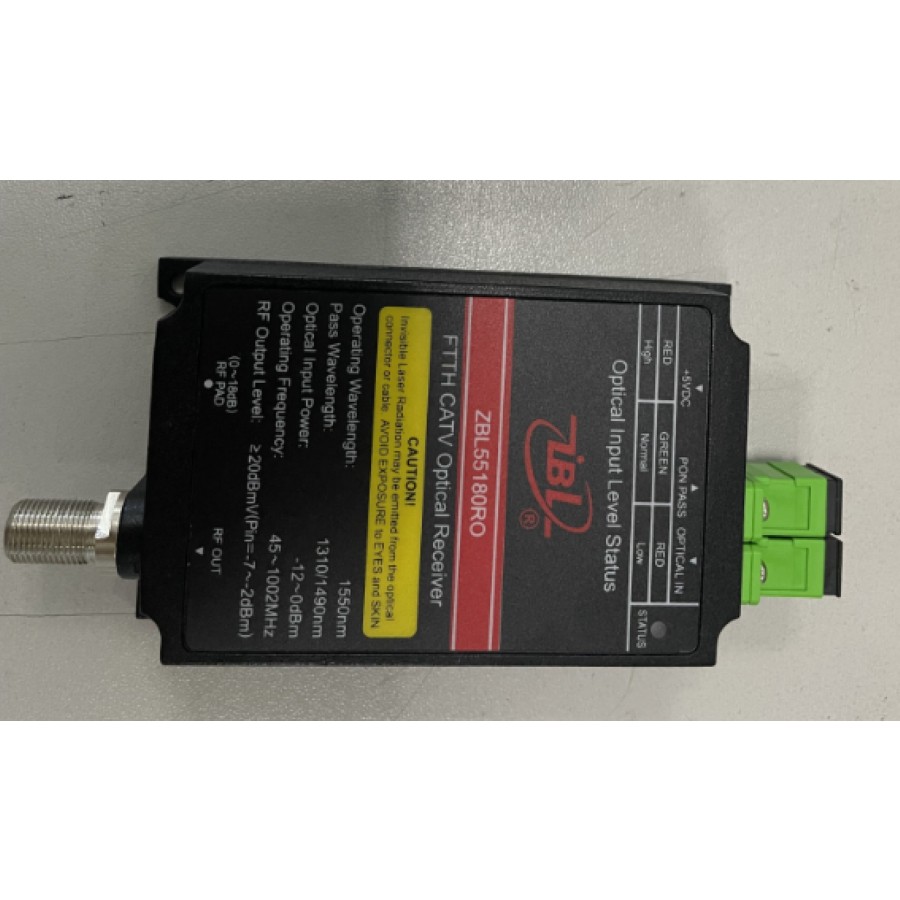

ZBL55180RO is a micro optical receiver designed for FTTH(Fiber To The Home) application networks. It is compacted in size and made in die-cast metal housing.ZBL55080RO has 3-stage LED optical input power indicator with SC/APC input connector and one RF output with “F” female connector.
Optical Parameters |
|
Receiver Type |
Photodiode with brand name from G7/EU or Korea countries |
Amplifier Type |
MMIC with brand name from G7/EU countries or Korea or Taiwan |
Input Wavelength (nm) |
1260 ~ 1600 |
Operating Wavelength (nm) |
1550 ± 20 |
Input optical Power (dBm) |
-10 ~ -2, or larger range |
Optical return loss (dB) |
≥ 45 |
Fiber connector |
SC/APC |
RF Parameters |
|
Bandwidth (MHz) |
82-862, or larger range |
Output level (dBmV) |
≥ 20 per channel, with optical input: -7 ~ -2 dBm |
Output level adjust (dB) |
0 ~ -15 |
Flatness (dB) |
≤ ± 0.75 |
Return loss (dB) |
≥ 14 |
Impedance |
75 Ω |
RF output connector |
At least 1 output port, F female type |
Link performance |
|
77 NTSC / 59 PAL analog channels |
CNR ≥ 50 dB (0 dBm optical input) or CNR ≥ 49 dB (-1 dBm optical input) or CNR ≥ 48 dB (-2 dBm optical input) |
CSO ≥ 60 dB, CTB ≥ 60 dB |
|
Others |
|
Power supply requirements |
- Using the external AC/DC adapter, switching mode power supply, with AC input: 100-240 VAC, 50/60Hz, or larger - Follow the latest SCTV technical standards of external power supplies for end devices or meet at least the following requirements:
|
Operational Temp. (oC) |
0 ~ 40, or larger |
