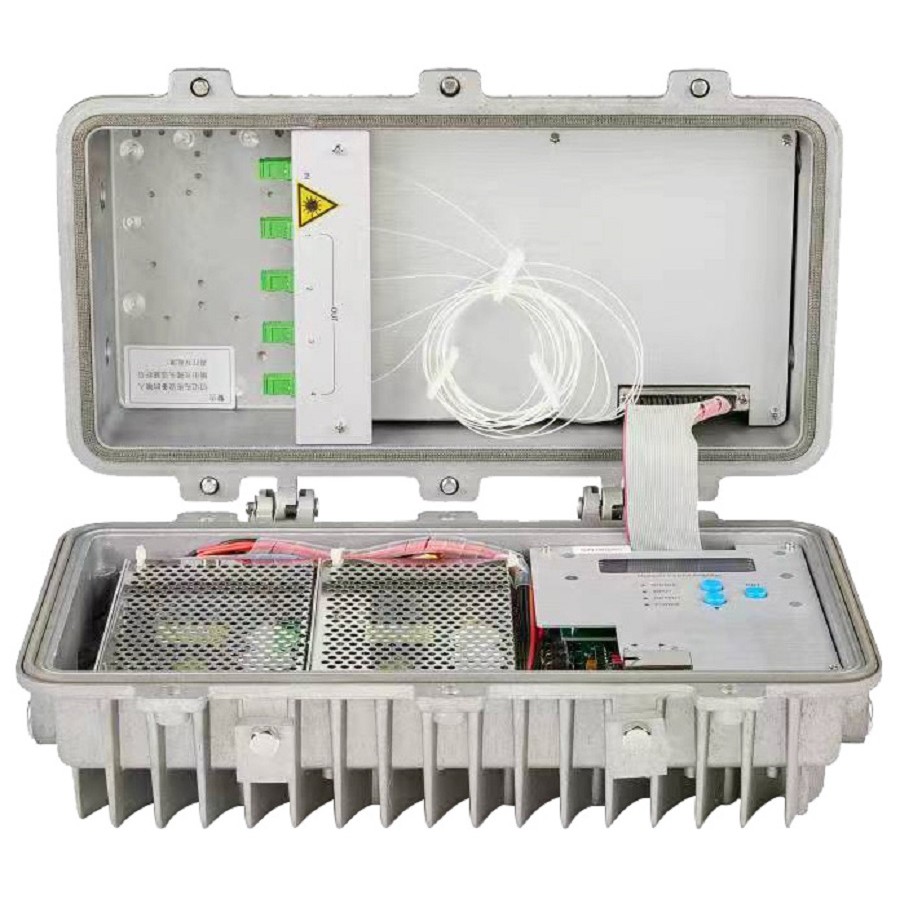

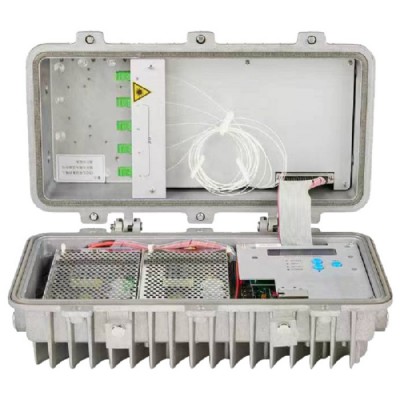

Features:
1.It adopts the top brand pump laser and double cladding active fiber.
2.Perfect APC, ACC and ATC optical circuit design ensures low noise, high output and high reliability of the device in the whole operating band (1545 ~ 1565nm).
3.It has the function of automatic protection of low input or no input. When the input optical power is lower than the set value, the laser will automatically shut down to protect the operating safety of the device.
4. Output adjustable , adjustment range 0~-4dBm.
5.The switching time of optical switch is short and the loss is small. It has the functions of automatic switching and forced manual switching.
6. Built-in dual power supply, automatically switched and hot plug in/out supported.
7. The operating parameters of the whole machine are controlled by microprocessor, and the LCD status display on the front panel has many functions such as laser status monitoring, parameter display, fault alarm, network management, etc.; once the operating parameters of the laser deviate from the allowed range set by the software, the system will alarm promptly.
8. Standard RJ45 interface is provided, supporting SNMP and WEB remote network management.
|
Category |
Items |
Unit |
Technical Index |
Remarks |
||
|
Min. |
Typ. |
Max. |
||||
|
Optical Index |
CATV Operating Wavelength |
nm |
1545 |
|
1565 |
|
|
Optical Input Range |
dBm |
-8 |
|
+10 |
|
|
|
Output Power |
dBm
|
|
|
37 |
1dBm interval |
|
|
Output adjustment Range |
dBm |
-4 |
|
0 |
Adjustable, each step 0.1dB |
|
|
Output Ports Uniformity |
dBm |
|
|
0.7 |
|
|
|
Output Power Stability |
dBm |
|
|
0.3 |
|
|
|
No. of COM Ports |
|
|
|
16 |
SC/APC |
|
|
|
|
32 |
LC/APC |
|||
|
Switching Time of Optical Switch |
ms |
|
|
8.0 |
Optional |
|
|
Insertion Loss of Optical Switch |
dBm |
|
|
0.8 |
Optional |
|
|
Noise Figure |
dB
|
|
|
6.0 |
Pin：0dBm |
|
|
PDL |
dB |
|
|
0.3 |
|
|
|
PDG |
dB |
|
|
0.4 |
|
|
|
PMD |
ps |
|
|
0.3 |
|
|
|
Remnant Pump Power |
dBm |
|
|
-30 |
|
|
|
Optical Return Loss |
dB
|
50 |
|
|
|
|
|
Fiber Connector |
|
SC/APC |
FC/APC、LC/APC |
|||
|
General Index |
RF Test |
dBμV
|
78 |
|
82 |
Optional |
|
Network Management Interface |
|
SNMP,WEB supported |
|
|||
|
Power Supply |
V |
90 |
|
265 |
AC |
|
|
50 |
|
70 |
AC |
|||
|
Power Consumption |
W
|
|
|
50 |
35dBm,dual power supply |
|
|
Operating Temp |
℃
|
-45 |
|
+85 |
|
|
|
Size |
mm
|
406×248×164 |
|
|||
|
Weight |
Kg
|
9.5 |
|
|||
