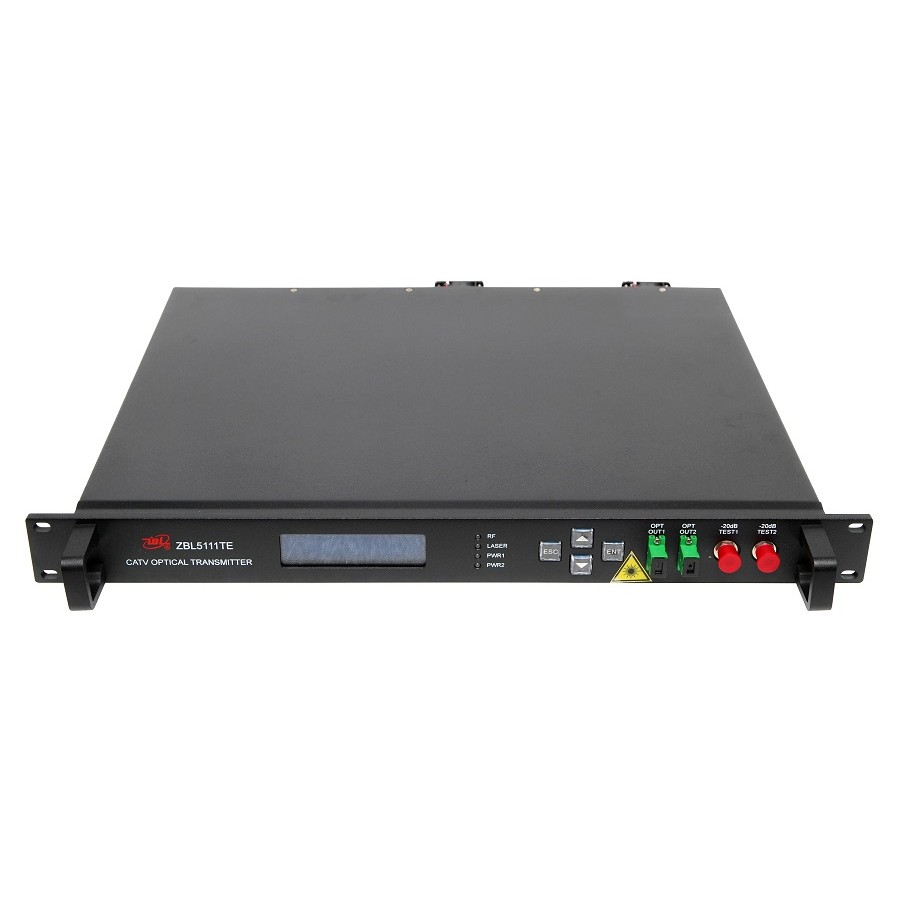

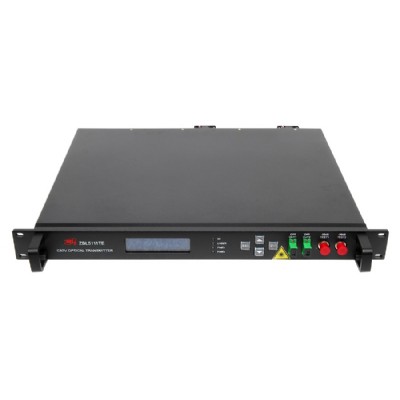

19-inch 1U chassis, with main and backup low-ripple switcher power supply
Real-time parameters checkable or adjustable via LCD screen
RJ45 and RS232 interface for web management and monitoring
High-linearity & low-noise DFB laser
|
Item |
Specification |
|
Model |
ZBL5111TE-2 |
|
Optical Wavelength |
1310±20nm |
|
Optical Output Power |
14/16/18/20mW |
|
Optical Connector |
SC/APC |
|
Frequency Range |
47~1002MHz |
|
RF Input Level |
15~25dBmV |
|
Flatness |
±0.75dB |
|
Output Return Loss |
≥16dB |
|
Adjustable ATT |
12dB(step0.5dB) |
|
AGC/MGC |
Optional |
|
Input Impedance |
75Ω |
|
C/N* |
≥52dB |
|
CTB* |
≤-65dBc |
|
CSO* |
≤-63dBc |
|
Network Management |
RJ45 |
|
Voltage |
100~240V |
|
Power |
50W |
|
Working Temperature |
0~+40℃ |
|
Dimension |
483 mm×415 mm×44 mm |
* Testing condition: input optical power@-1dBm, 77 NTSC channels/60 PAL channels + 320MHz digital channels.
