1.Adopting an integrated aluminum die-cast enclosure, small size
2.Dual color indicator LED displays the optical power level status
3.ZBL55180RN series compatible with 1G EPON and 10G EPON
|
Item |
Specification |
|
Model |

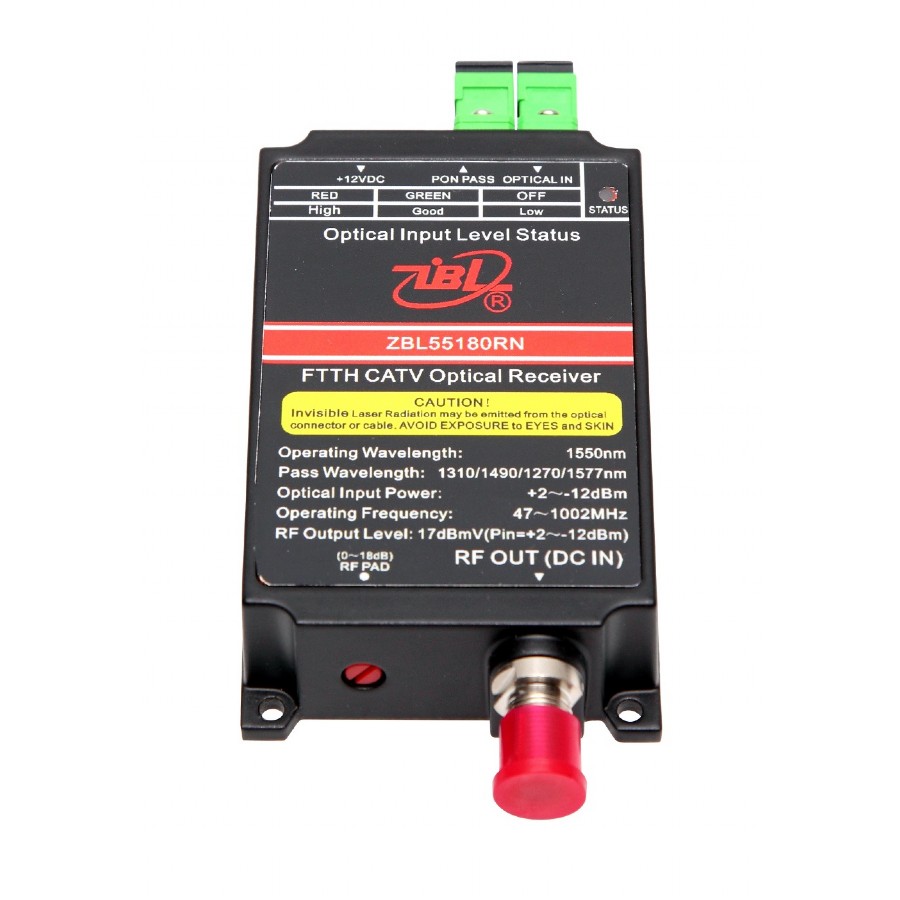

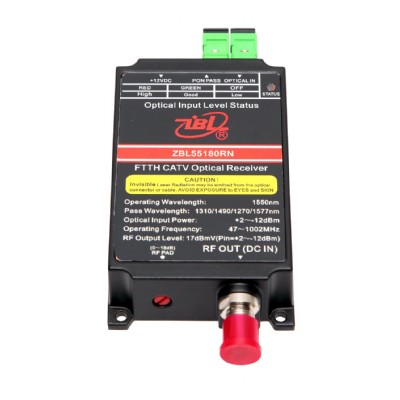

ZBL55180RN |
|
Optical Wavelength |
1550±10nm |
|
Optical Isolation Wavelength |
- |
|
Optical Reflection Wavelength |
1270&1310&1490&1577±10nm |
|
Optical Input Power (PIN) |
-12~-3dBm |
|
Optical AGC Stability |
±2dB |
|
Max. Input Optical Power |
+3dBm |
|
Optical AGC |
-12~+2dBm |
|
Optical Connector |
SC/APC |
|
Frequency Range |
45 ~ 1002 MHz |
|
RF Output Level |
≥19dBmV@1002MHz |
|
Flatness |
±1dB |
|
Output Return Loss |
≥12dB |
|
Slope |
4±1dB |
|
Adjustable ATT |
0~18dB |
|
C/N |
≥51dB # |
|
CTB |
≤-65dBc # |
|
CSO |
≤-60dBc # |
|
Optical Return Loss |
≥45dB |
|
Optical Power Indicator (LED) |
OFF：PIN＜-10dBm Green：-10dBm＜PIN＜+2dBm Red：PIN＞+2dBm |
|
Voltage |
12VDC |
#Testing condition: input optical power@-1dBm,98 CENELEC channels, OMI=3.5%
