I2C interface reads and sets parameters
Adjustable output level, on-off control
Built-in optical AGC
Digital display shows various parameters, and program controls ATT and EQ.
Web management optional
|
Item |
Specification |
|
Model |

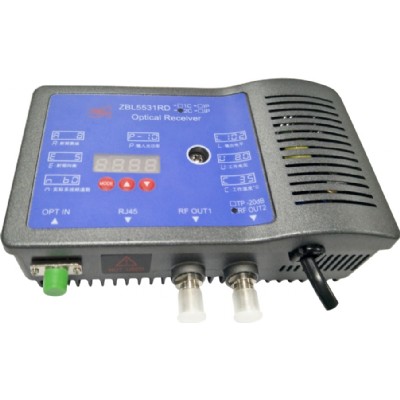

ZBL5531RD |
|
Optical Wavelength |
1100~1650nm |
|
Optical Reflection Wavelength |
- |
|
Optical Input Power |
-10~+3dBm |
|
Max. Input Optical Power |
+3dBm |
|
Optical AGC |
-9~+2dBm |
|
Optical Connector |
SC/APC or FC/APC |
|
Frequency Range |
45 ~ 1002 MHz |
|
RF Output Level |
≥46dBmV（single path output） ≥102（double path output） |
|
Flatness |
±1dB |
|
Output Return Loss |
≥14dB |
|
Slope |
- |
|
Adjustable ATT |
0~15(step1dB) |
|
Adjustable EQ |
0~15(step1dB) |
|
C/N |
≥51dB # |
|
CTB |
≤-60dBc # |
|
CSO |
≤-60dBc # |
|
Optical Return Loss |
≥45dB |
|
Voltage |
110~220V |
#Testing condition:input optical power@-1dBm,98 CENELEC channels,OMI=3.5%,EQ 8dB,output level is 106dBμV(single path output) or 102dBμV(double path output)
