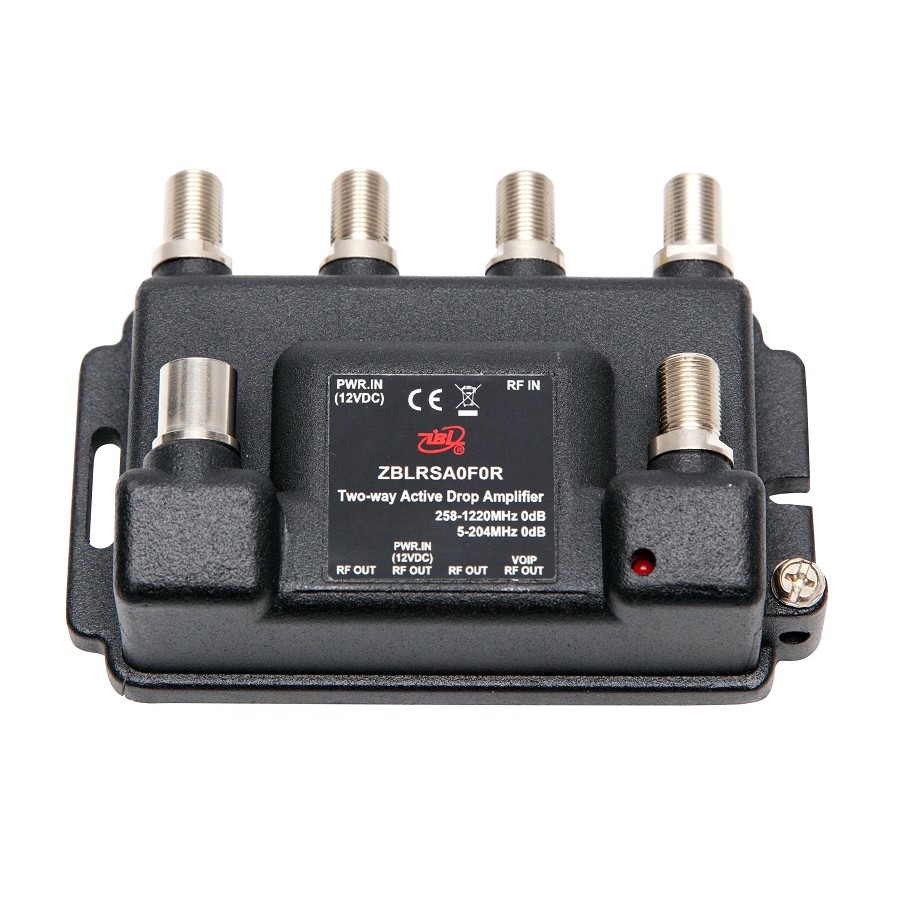

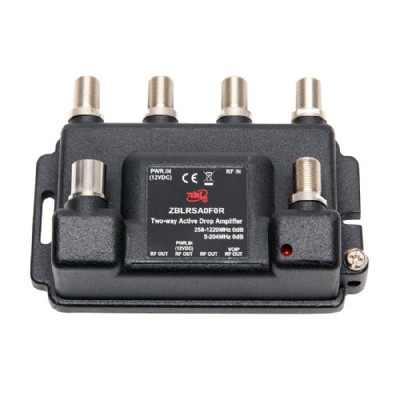

Small size, aluminum alloy die-cast, sealed for excellent waterproof
Four RF output ports, DOCSIS3.1 compatible
Frequency splits 42/54MHz, 65/85MHz, 85/102MHz and 204/258MHz optional
|
Item |
Specification |
|
|
Model |
ZBLRSA0F0R |
|
Forward Path |
Frequency Range |
54/85/102/258~1220MHz |
|
Gain |
≥-1.5dB |
||
Flatness |
±1dB |
||
Insertion Loss |
≤1.2dB |
||
Return Loss |
≥18dB |
||
Isolation |
54/85/102/258~1002MHz |
≥24dB |
|
1002~1220MHz |
≥22dB |
||
CTB |
≤-70dBc # |
||
CSO |
≤-62dBc # |
||
Noise Figure |
≤5.6dB |
||
Group Delay(3.58MHz bandwidth) |
≤20ns |
||
Return Path |
Frequency Range |
5~42/65/85/204MHz |
|
Gain |
≥0dB |
||
Insertion Loss |
≤0.5dB |
||
Flatness |
±0.75dB |
||
Return Loss |
≥18dB |
||
Isolation |
≥24dB |
||
DSO |
≤-65dBc ※ |
||
DTO |
≤-57dBc ※ |
||
Noise Figure |
≤15dB |
||
Group Delay(1.5MHz bandwidth) |
≤20ns |
||
MoCA Band |
Frequency Range |
- |
|
Insertion Loss (OUT-OUT) |
- |
||
RF IN - RF OUT |
Downstream |
- |
|
Upstream |
- |
*Test conditions: Multi channel signal source status: 79 channel output 74dBmV signals, while the other channels output 68dBmV signals.
#Test conditions: Multi channel signal source status: 79 channel output 70dBmV signals, while the other channels output 64dBmV signals.
※Test conditions: Input 13MHz&19MHz signal, amplifier output level 115dBmV, DSO frequency point 6MHz&32MHz, DTO test frequency point 7MHz&25MHz.
