With multiple adaptive fast Ethernet ports, each adaptive port can automatically adapt to the speed of the connected terminal device(such as ZBL1008 ZBL1016 can automatically adapt to 10Mbps or 100Mbps,ZBL1108 ZBL1116 can be automatically adapt to 10Mbps or 100Mbps or 1000Mbps),and transmit data at the corresponding rate, that is ,the user can connect 10M,100M(and 1000M) to both Ethernet switches and fast Ethernet device using a switch network segments are integrated into the same network through it.
Equipped with virtual local area network(VLAN) packet data exchange function, users can set the function for each end through VLAN port for VLAN grouping.
Each port supports MDI/MDI-X polarity automatic recognition, which means that each port can use a straight through network cable or a crossover network line.
|
|

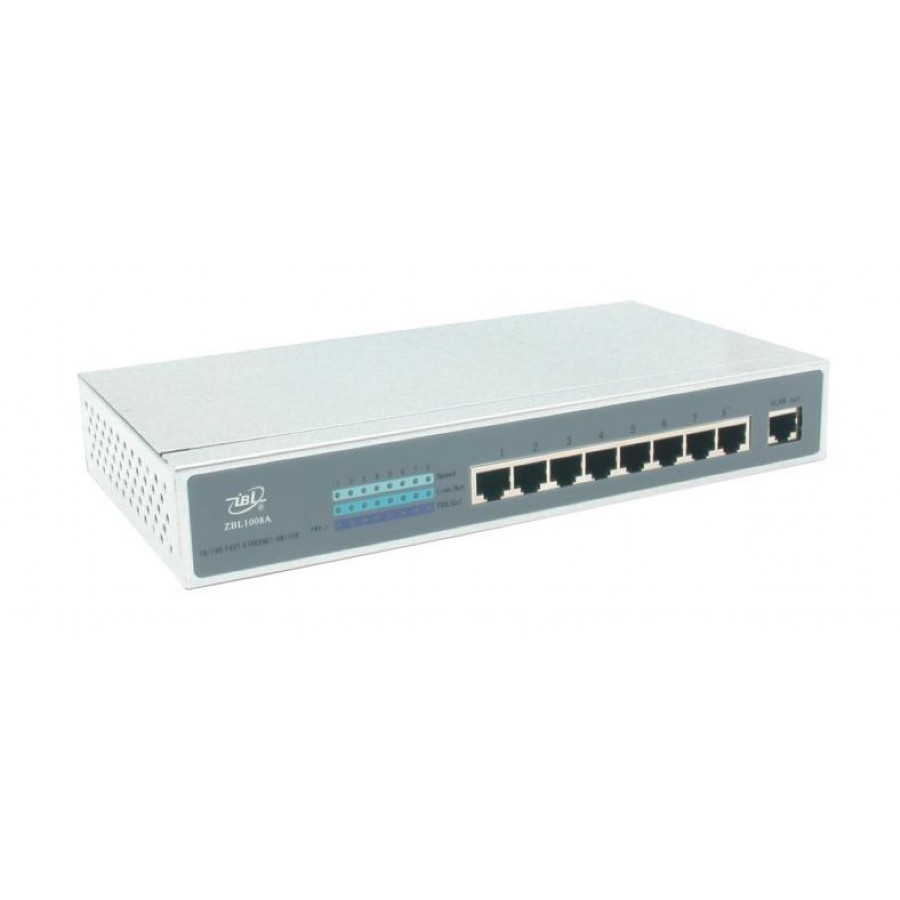

ZBL1008 |

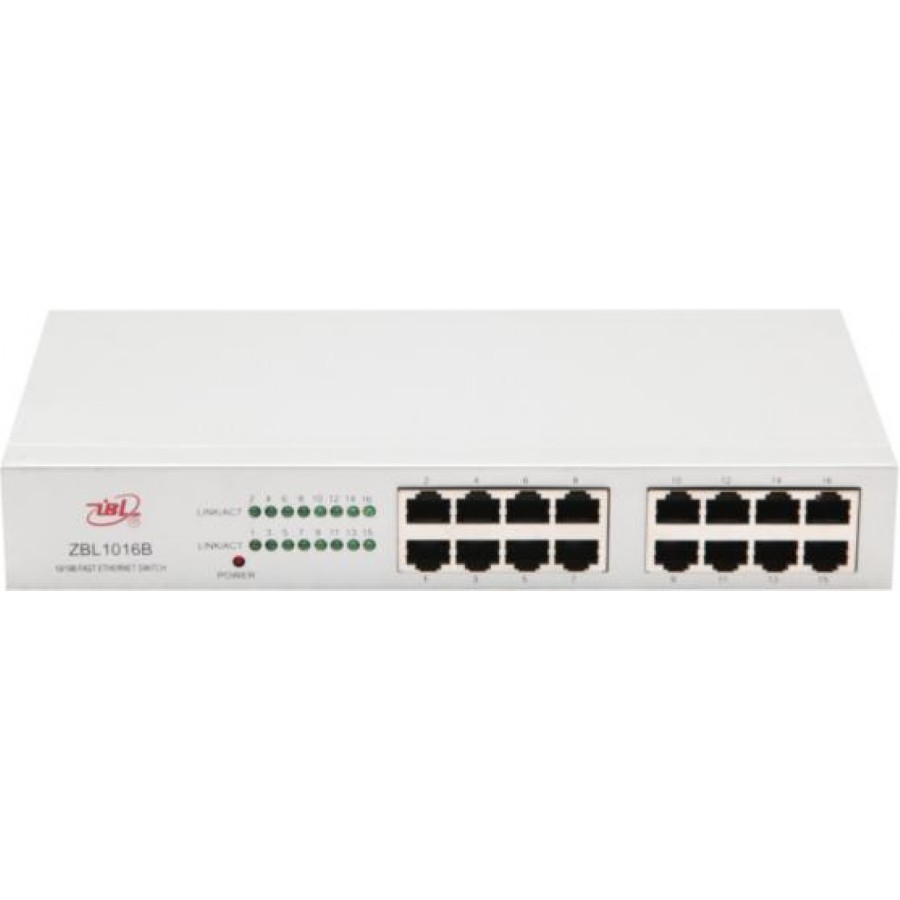

ZBL1016 |
ZBL1108 |
ZBL1116 |
|
Protocal standards |
IEEE802.3 |
IEEE802.3 |
IEEE 802.3 |
IEEE 802.3 |
|
IEEE802.3u |
IEEE802.3u |
IEEE 802.3u |
IEEE 802.3u |
|
|
ANSI/IEEE STD 802.3 |
IEEE802.3X |
IEEE 802.3ab |
IEEE 802.3ab |
|
|
|
IEEE802.1p |
IEEE 802.1X |
IEEE 802.1X |
|
|
|
IEEE802.1q |
IEEE 802.3X |
IEEE 802.3X |
|
|
Media type |
10BASE-T：Category 3/4/5 unshielded twisted pair |
10BASE-T： 100ohm category 3/4/5 twisted pair |
10BASE-T： category 3/4/5 twisted pair |
ultra category 5/6 wire |
|
10BASE-T：Category 3/4/5 unshielded twisted pair |
100BASE-TX：100ohm category 5/5e twisted pair |
100BSA-TX: category 5 twisted pair |
||
|
|
|
1000BASE-TX: category 5 twisted pair |
||
|
Port |
1*VLAN performance setting port 8*10/100M adaptive port Auto MDI/MDIX
|
port 16*10/100M adaptive port Auto MDI/MDIX |
port 8*10/100M adaptive port Auto MDI/MDIX |
port 16*10/100M adaptive port Auto MDI/MDIX |
|
Port type |
twisted pair RJ45 |
twisted pair RJ45 |
twisted pair RJ45 |
twisted pair RJ45 |
|
Transmission mode |
total and half duplex automatic selection |
total and half duplex automatic selection |
total and half duplex automatic selection |
total and half duplex automatic selection |
|
Transmission speed |
10,100,10/100Mbps |
10,100,10/100Mbps |
10,100,1000，10/100/1000Mbps |
10,100,1000，10/100/1000Mbps |
|
Medium packet loss rate |
<0.01% |
<0.01% |
<0.01% |
<0.01% |
|
Time delay |
<100μs |
<100μs |
<100μs |
<100μs |
|
TP cable |
Cat 5UTP cable |
Cat 5UTP cable |
Cat 5UTP cable |
Cat 5UTP cable |
|
backplane bandwidth |
2Gbps |
3.2Gbps |
16Gbps |
52Gbps |
|
packet forwarding rate |
|
|
|
38.39Mpps |
|
MAC address capacity |
1k RAM/port |
4k RAM/port |
8k RAM/port |
8k RAM/port |
|
power input |
AC180～260V |
AC180～264V |
DC 5V--1A |
AC100～240V |
|
Frequency range |
50/60Hz |
50/60Hz |
|
50/60Hz |
|
Power consumption |
4W max |
5W |
5W |
7W max |
|
Working temperature |
-10℃～+50℃ |
-10℃～+50℃ |
0℃～40℃ |
-20℃～70℃ |
|
Storage temperature |
-40℃～+70℃ |
-20℃～+70℃ |
-40℃～+70℃ |
-20℃～90℃ |
|
Humidity |
5%～95% no condensation |
5%～95% no condensation |
10%～90% no condensation |
5%～95% no condensation |
|
Dimension |
250´135´40mm |
250´135´38mm |
160´72´24mm |
268´168´42mm |
